Description

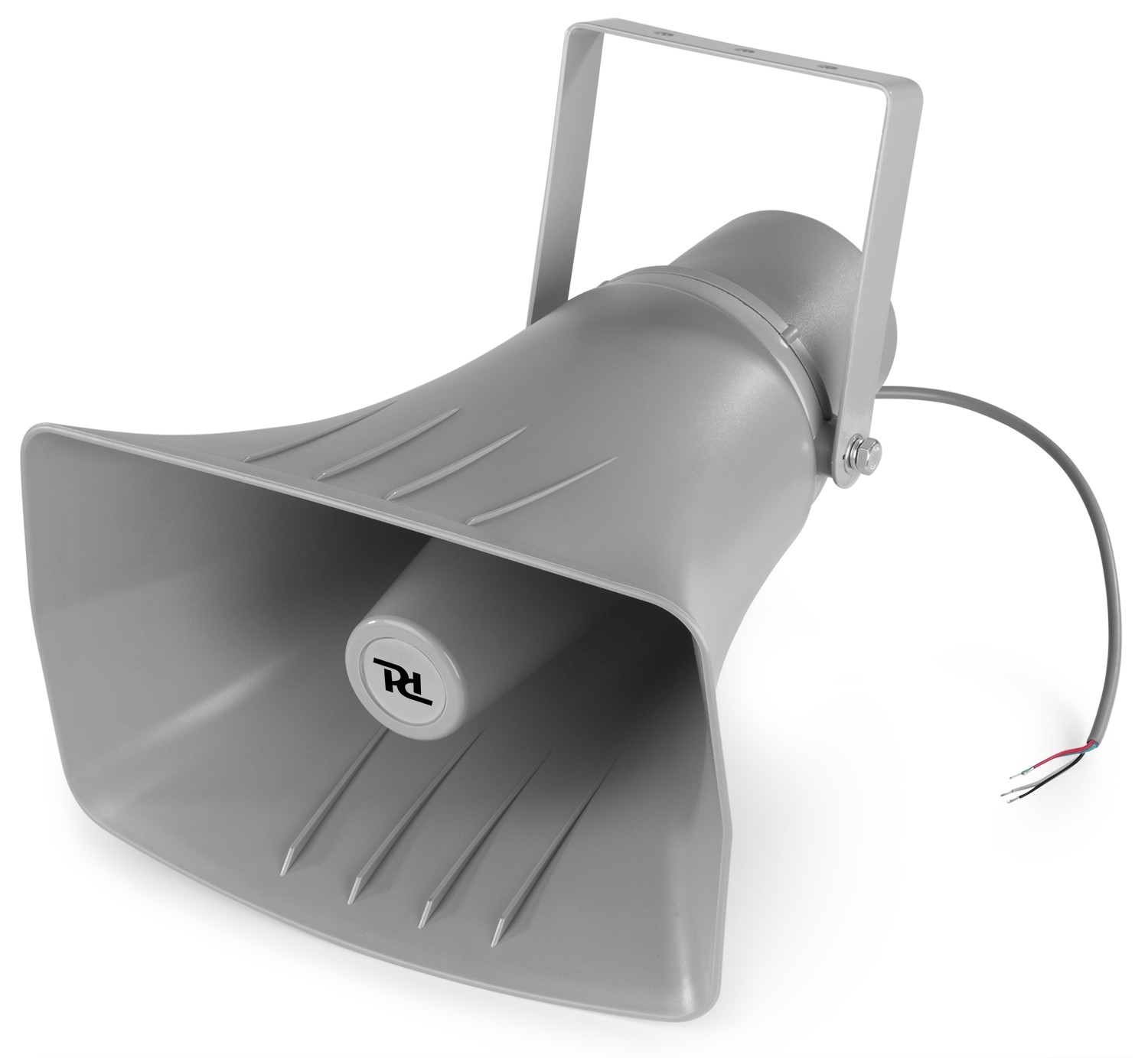

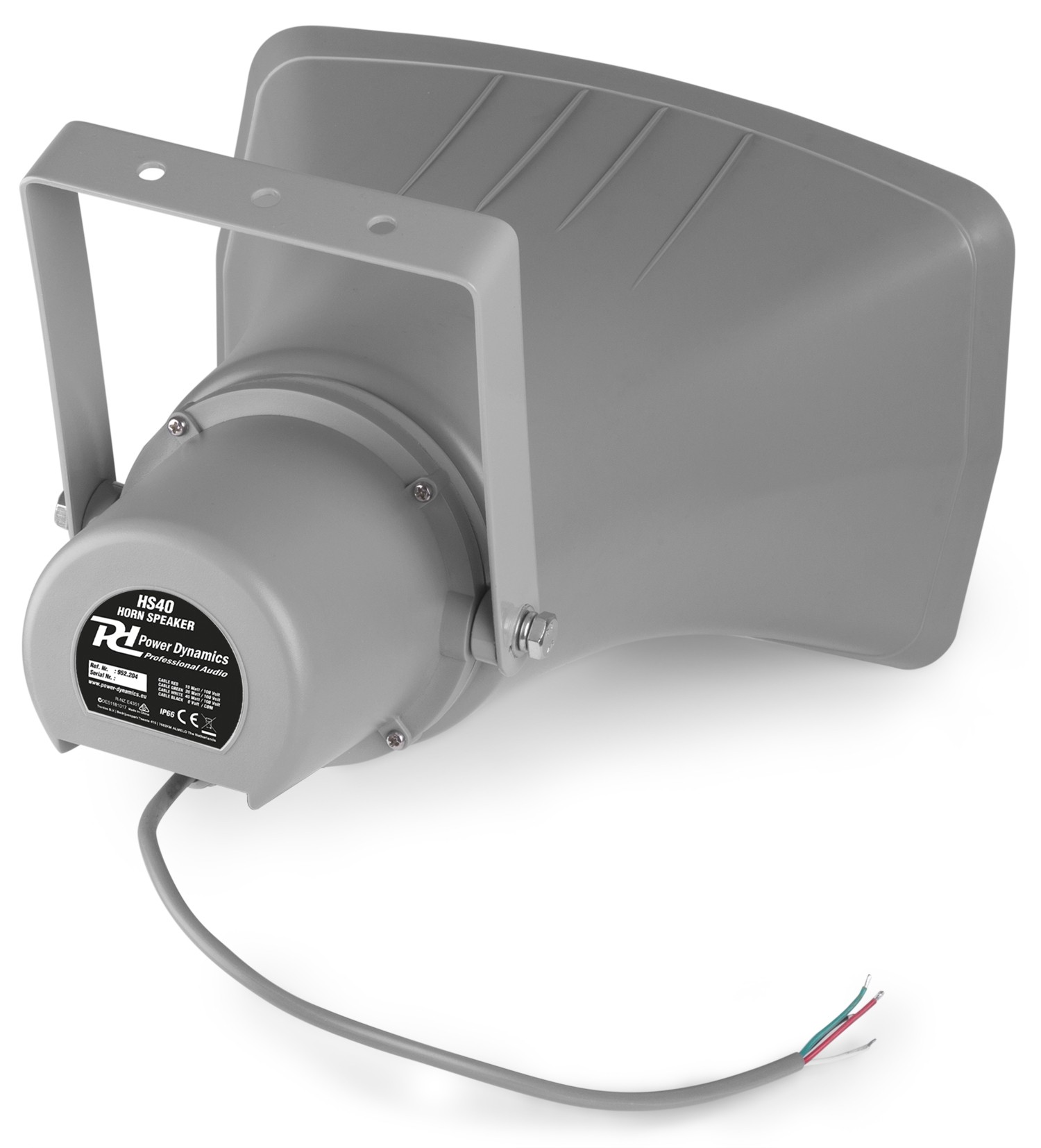

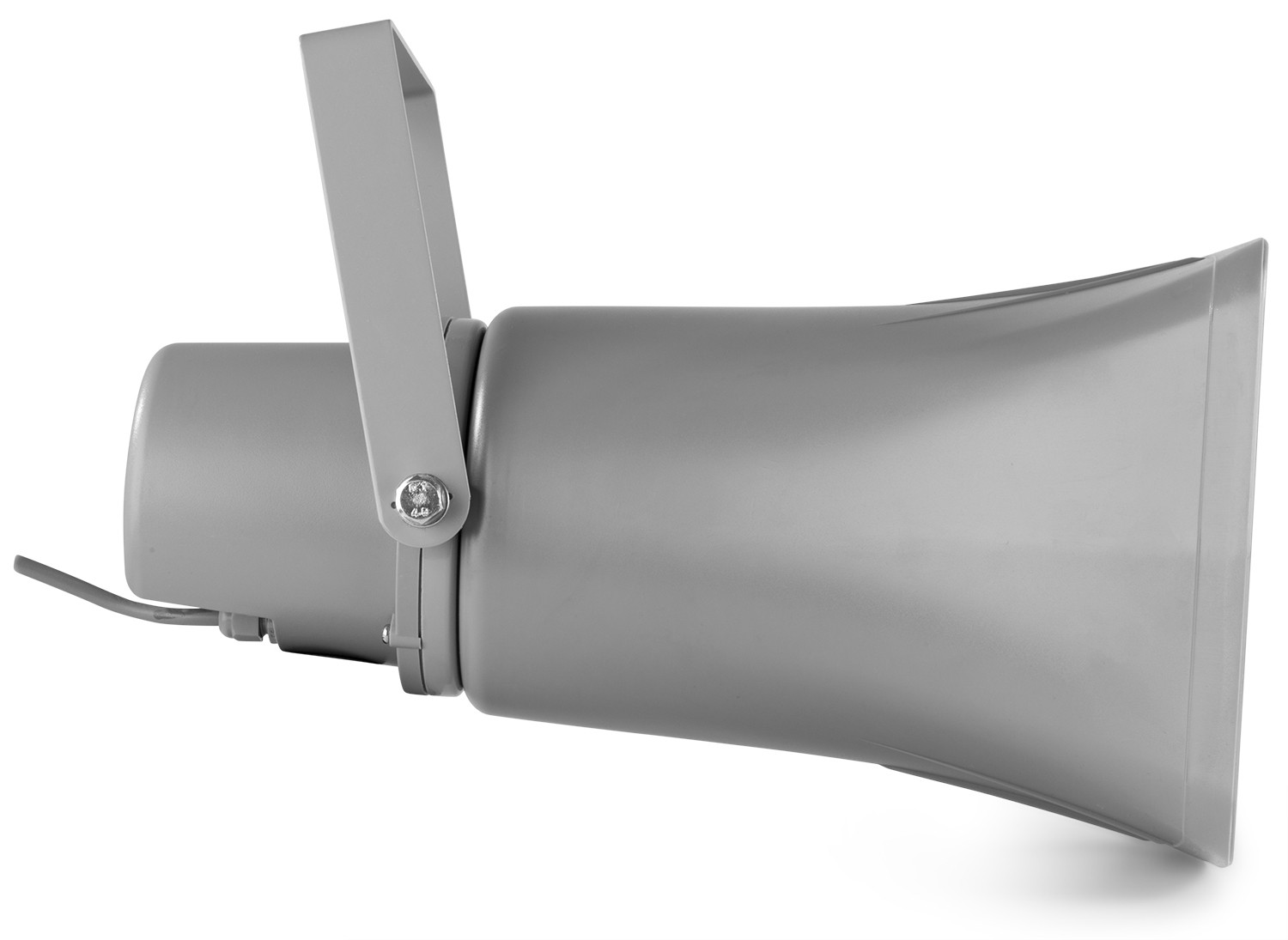

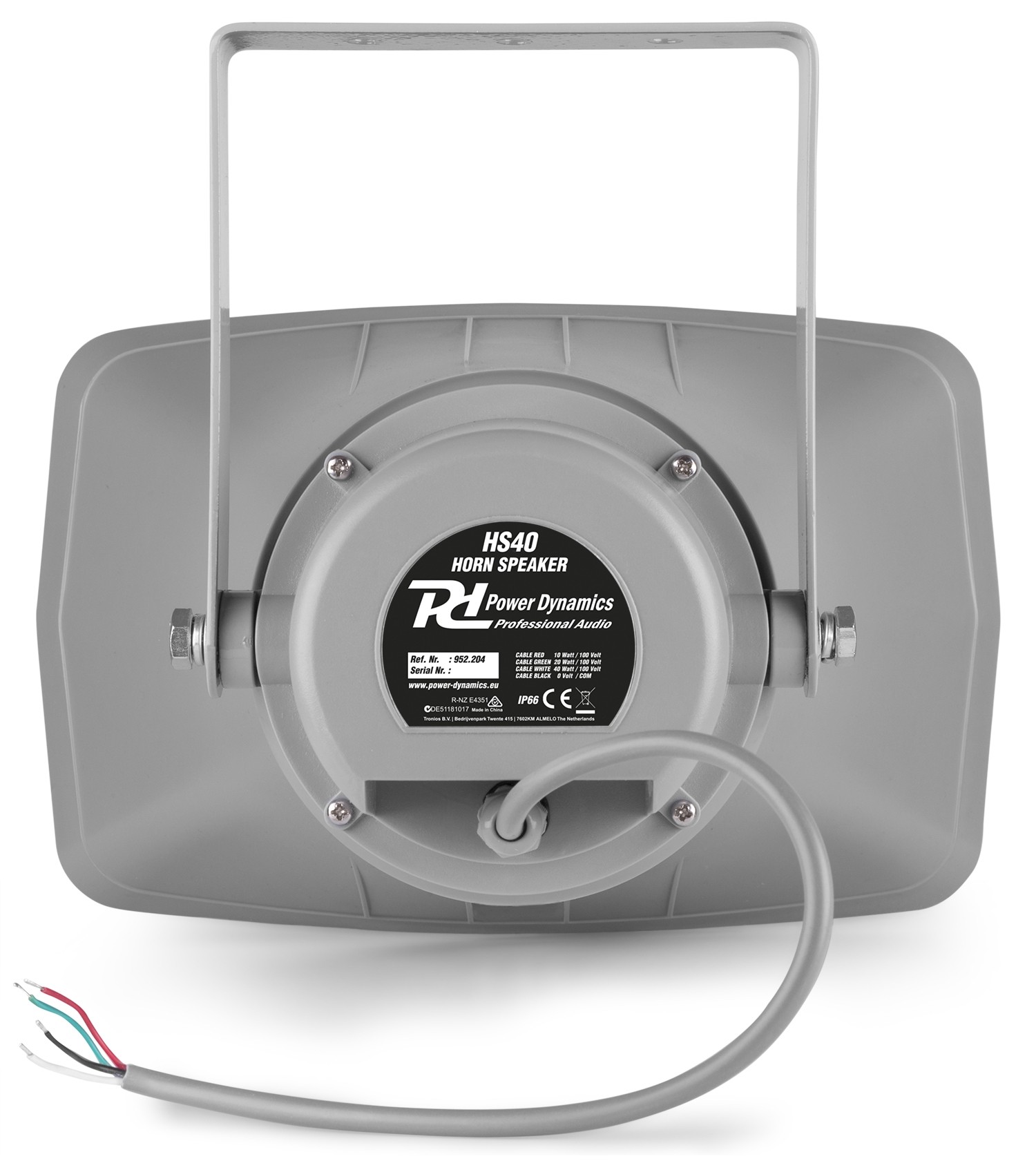

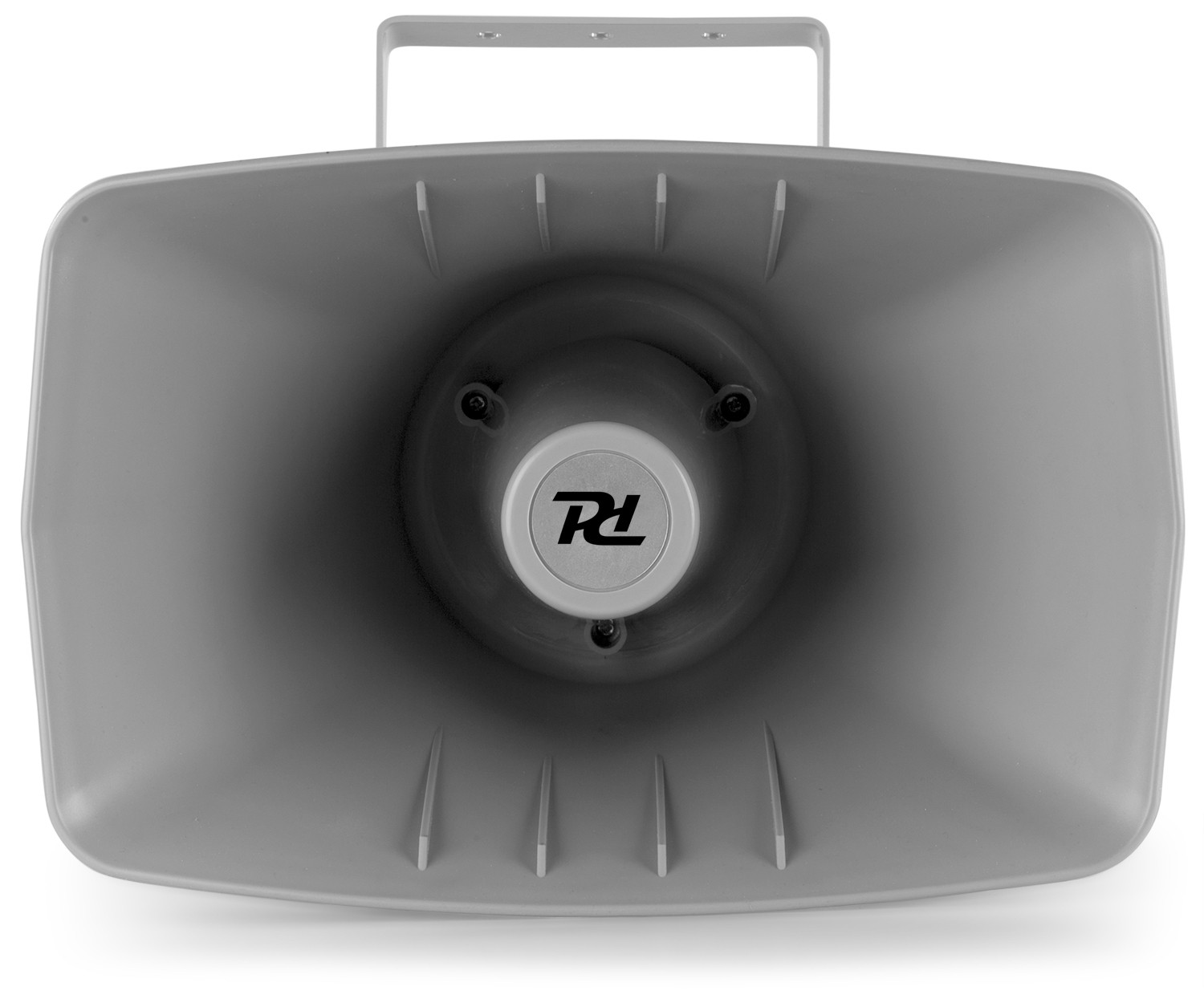

The HS40 is a high-performance rectangular PA horn loudspeaker designed for 100V line installations. With selectable output power from 10W to 40W and an IPX6 waterproof rating, it is ideal for all standard general and industrial installations. Made of durable grey ABS, it features a 100V line matching transformer and a mounting bracket.
Features:
• Brand: Power Dynamics
• Enclosure: ABS
• Intended use: outdoor
• IP rating: IPX6
• Impedance: 100V
• Selectable output power: 10, 20, 40W
• Frequency response: 400Hz-10,000Hz
• SPL: 1W / 1m 103dB
• Mounting bracket: included
• Dimensions (L x W x H): 315 x 207 x 368 mm
• Weight: 3 Kg
Code: 550923148
SKU: 952.204
EAN: 8715693306866

Technical documents

Environment External
Configuration Tromba
External height of the product 368.00 mm
External length of the product 315.00 mm
External depth of the product 207.00 mm
Frequency response 400Hz-10KHz
Gross packaged weight 3.60 kg
Lead time in order confirmations Disponibile dalla settimana 49
Microphone presence No
Net weight of product 3.00 kg
Watt/meter efficiency 103dB
Potenza 100 volt 40/20/10
potenza_nominale 40.00 W
Colour Grey
Impedance 100V
Installation type a palo e parete
Material ABS
Number of poles (Connectors) 2
Power rating (W) 40W
Protection rating IP IPX6
Supplied with 100V transformer Yes
