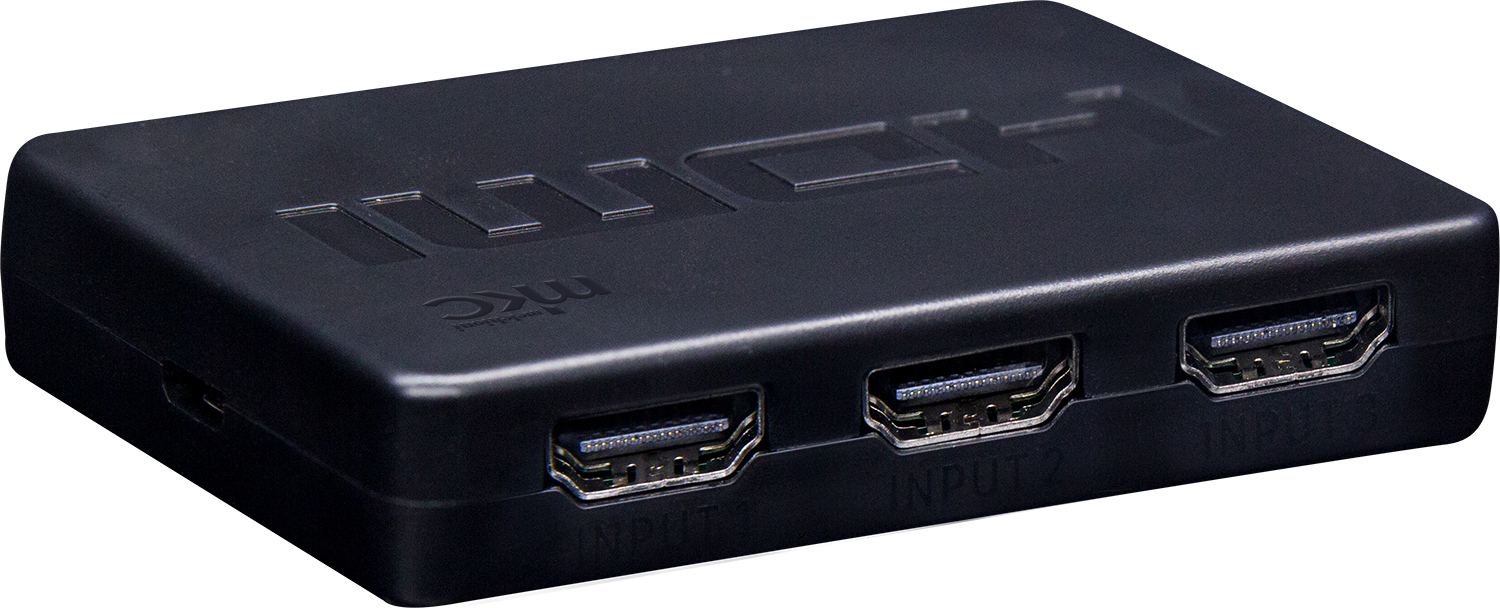

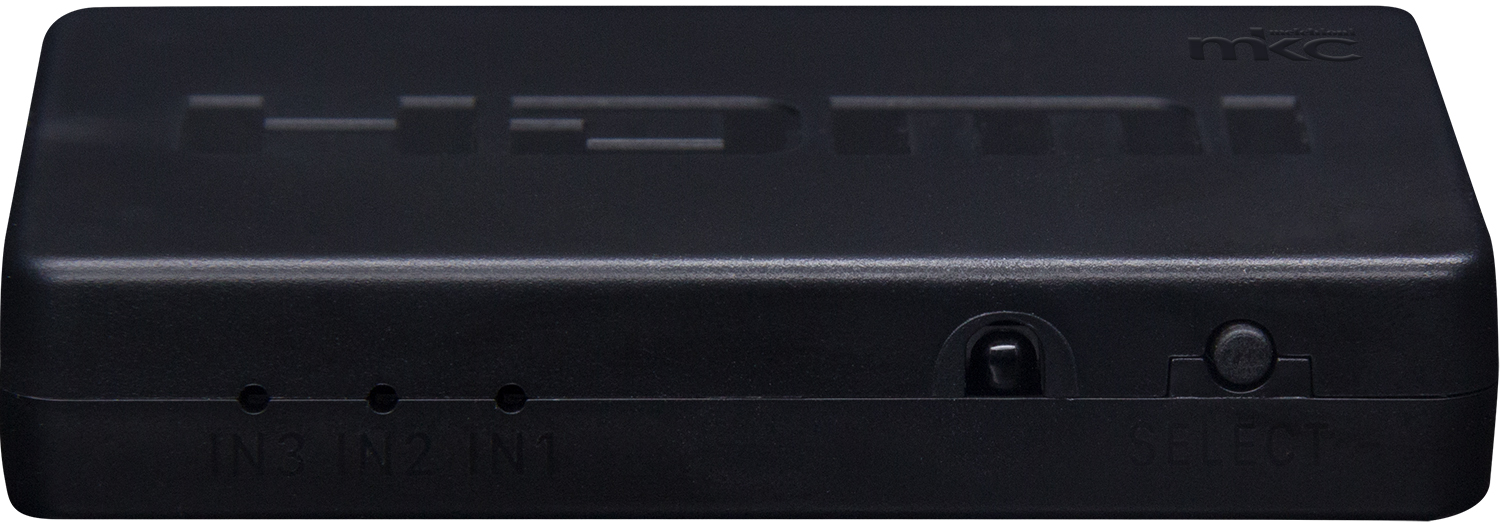

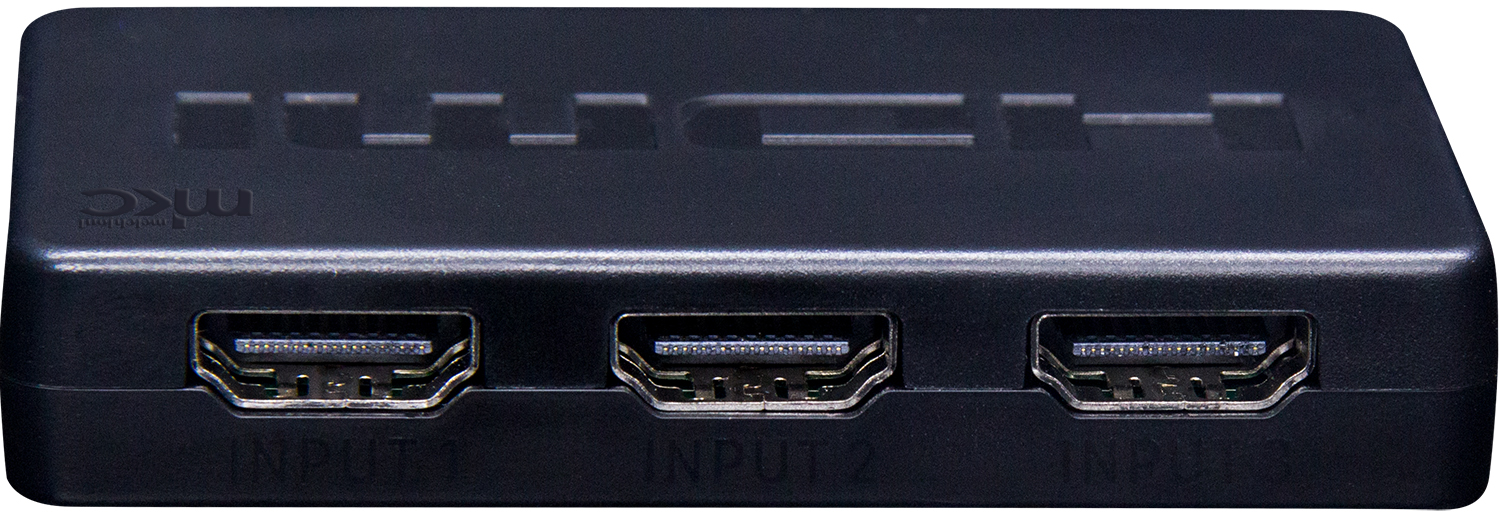

4K 30Hz HDMI Selector 3 IN × 1 OUT mod. MK-DSW3-N
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI selector 3 IN x 1 OUT, 4K 30Hz resolution, HDMI version 1.4b
Item
149029716
Part No.
149029716
Ean
8006012367713
Manufacturer
MKC
Non disponibile
Description
This 4k 30Hz HDMI 3x1 HDMI selector allows you to switch 3 HDMI input ports to a single display via the supplied remote control or the cycle switch on the unit. It supports all HD formats including: 720p, 1080i, 1080p, and 2160p.
Features
• HDMI Version: 1.4b
• 3D Video Support
• Maximum supported resolution: 4K/30Hz video
• Supports data rates of 3.4 Gbps for TMDS clock up to 340MHz
• Supports 24/30/36 bit deep colour
• Supports standard AWG26 HDMI cable. Input up to 8 metres. Output up to 8 metres
Technical specifications
• HDMI Version: 1.4b
• HDMI Resolution: 4K/30Hz
• 3D video format support
• Video colour format support: 24/30/36 bit Deep colour
• Audio format support: DTS HD/Dolby TrueHD/DTS/Dolby AC3/DSD
• Maximum bandwidth: 340MHz
• Maximum transmission speed: 3.4Gbps
• Supports single and high-definition display for multiple sources such as DVD players and digital decoders, A/V receivers, media players.
• Input and output cable distance at 1080p resolution: standard AWG26 HDMI cable ≤8 m
• Input and output cable distance at 4K/30Hz resolution: standard AWG26 HDMI cable ≤5 m
• Operating temperature range: -15 to 53 ℃
• Power supply: DC5V 1A (supplied USB to Micro USB cable)
If an external power supply is needed (not included), use a 5VDC 1A adapter.
• Dimensions (L x W x H): 70 x 50 x 10 mm
• Weight: 30g
Package includes
1 x HDMI Selector

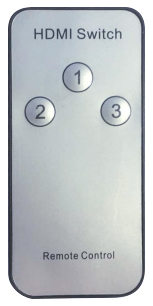

1 x IR Remote Control
1 x USB to Micro USB Cable
Technical documents
| SKU | 149029716 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367713 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 10.00 mm |
| External length | 70.00 mm |
| External Width | 50.00 mm |
| Gross weight | 60.00 g |
| Manufacturer Part Number | 149029716 |
| Net weight | 30.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI selector 3 IN x 1 OUT, 4K 30Hz resolution, HDMI version 1.4b |
