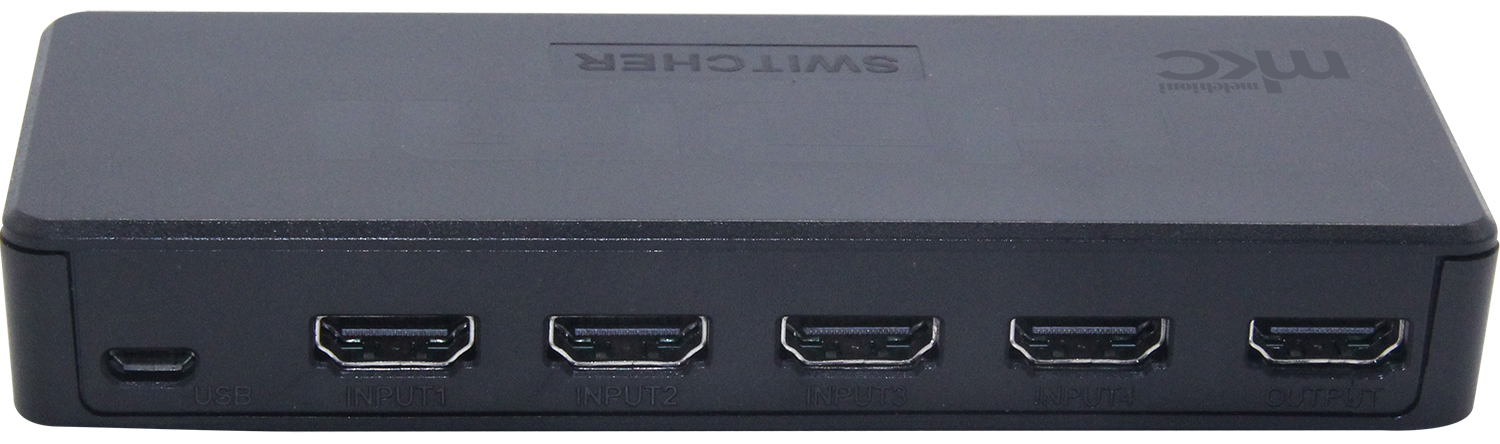

4K 30HZ HDMI Selector 4 IN × 1 OUT model MK-DSW4-M
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Selector 4 IN x 1 OUT, 4K 30Hz resolution, HDMI version 1.4b
Item
149029717
Part No.
149029717
Ean
8006012367720
Manufacturer
MKC
Non disponibile
Description
This 4K 30Hz 4x1 HDMI selector allows you to switch between 4 HDMI input ports on a single display using the supplied remote control or the buttons on the unit. The selector can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. It supports all HD formats including: 720p, 1080p, and 4K/30Hz.
Features
• HDMI Version: 1.4b
• 3D Video Support
• Maximum supported resolution: 4K/30Hz video
• Supports data rates of 3.4 Gbps for TMDS clock up to 340 MHz
• Supports deep colours 24/30/36 bit
• Supports standard AWG26 HDMI cable. Input up to 8 metres. Output up to 8 metres
• Supports single and high-definition display for multiple sources such as DVD players and satellite receivers, digital projectors, A/V receivers, set-top boxes
Specifications
• HDMI Version: 1.4b
• HDMI Resolution: 4K / 30Hz
• 3D video format support
• Video colour format support: 24/30/36 bit Deep Colour
• Audio format support: DTS-HD / Dolby TrueHD / DTS / Dolby-AC3 / DSD
• Maximum bandwidth: 340MHz
• Maximum transmission speed: 3.4Gbps
• Input cable distance: standard AWG26 HDMI cable ≤8 m
• Output cable distance: standard AWG26 HDMI cable ≤8 m
• Operating temperature range: -15 to 53 ℃
• Power supply: DC 5V 1A (supplied USB - DC cable)
If an external power supply is needed (not included), use a 5VDC 1A adapter.
• Dimensions (L x W x H): 142 x 58 x 22 mm
• Weight: 80g
Package includes
• 1 x HDMI Selector

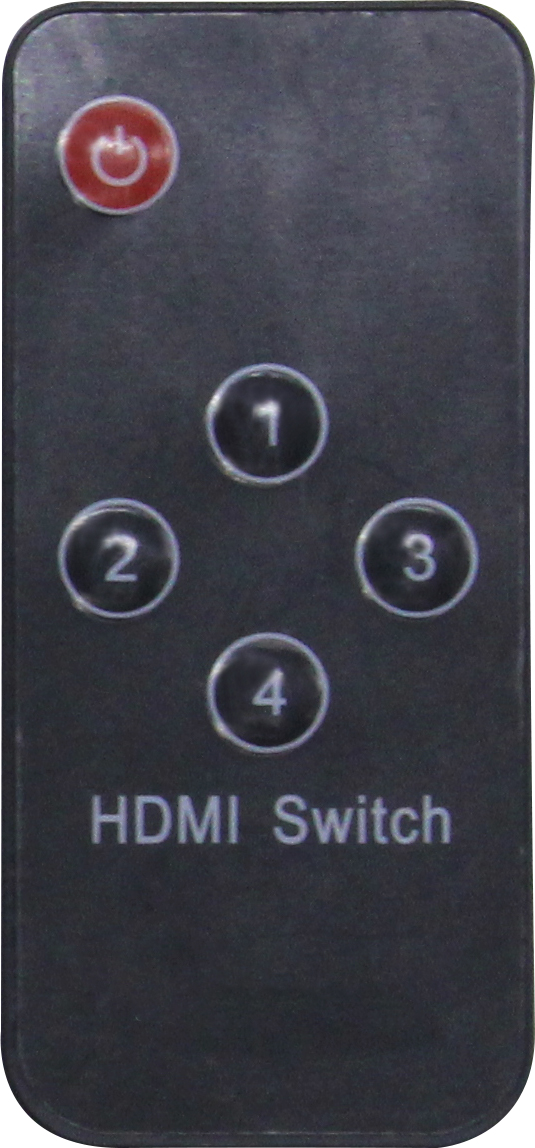

• 1 x IR Remote Control
• 1 x USB - DC Cable
Technical documents
| SKU | 149029717 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367720 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 22.00 mm |
| External length | 142.00 mm |
| External Width | 58.00 mm |
| Gross weight | 140.00 g |
| Manufacturer Part Number | 149029717 |
| Net weight | 80.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Selector 4 IN x 1 OUT, 4K 30Hz resolution, HDMI version 1.4b |
