4K 30Hz HDMI Selector 4 IN × 1 OUT with Audio Extractor, model MK-DSW4-M
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
4 IN x 1 OUT HDMI selector, 4K 30Hz resolution, HDMI version 1.4b, with digital audio extractor
Item
149029718
Part No.
149029718
Ean
8006012367737
Manufacturer
MKC
Non disponibile
Description
This 4K 30Hz 4x1 HDMI selector allows you to switch between 4 HDMI input ports to a single display using the supplied remote control or the buttons on the unit. The selector can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. It supports all HD formats including: 720p, 1080p, and 4K/30Hz.
Equipped with 2 digital audio outputs of coaxial/optical type and an analogue output via a 3.5mm stereo mini jack, it allows connection to an analogue stereo amplifier or a Home Cinema AV receiver with digital audio inputs.
Features
• HDMI version: 1.4b
• HDMI resolution: 4K / 30Hz
• Supports 3D video format
• Supports video colour formats: 24/30/36 bit Deep Colour
• Supports audio formats: DTS-HD/Dolby TrueHD/DTS/Dolby AC3/DSD Maximum bandwidth: 340MHz
• Maximum transmission speed: 3.4Gbps
• Supports single and high-definition display for multiple sources such as DVD players and satellite receivers, digital projectors, A/V receivers, set-top boxes
• Input cable distance: standard HDMI cable AWG26 ≤8 m
• Output cable distance: standard HDMI cable AWG26 ≤8 m Operating temperature range: -15 to 53 ℃
• Maximum power consumption: 800mA
• Power adapter specifications: Input AC 100-240V 50/60Hz - Output DC 5V/1.5A
• Dimensions (L x W x H): 167 x 67 x 28 mm
• Weight: 240g
Package includes
• 1 x HDMI Selector

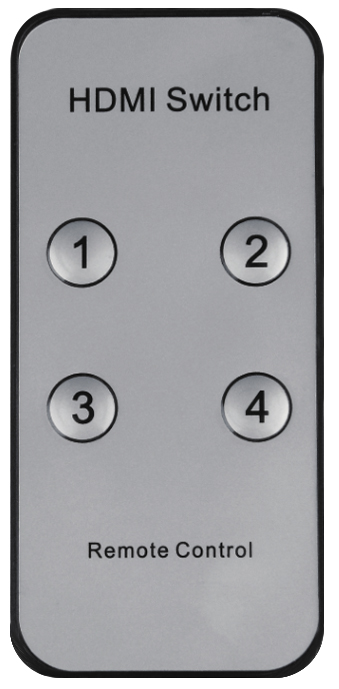

• 1 x IR Remote Control
• 1 x Power Adapter
Technical documents
| SKU | 149029718 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367737 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 28.00 mm |
| External length | 167.00 mm |
| External Width | 67.00 mm |
| Gross weight | 300.00 g |
| Manufacturer Part Number | 149029718 |
| Net weight | 240.00 g |
| Number and type of video input | HDMI_4IN_1OUT |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | 4 IN x 1 OUT HDMI selector, 4K 30Hz resolution, HDMI version 1.4b, with digital audio extractor |
| Material | Metal |
