Description

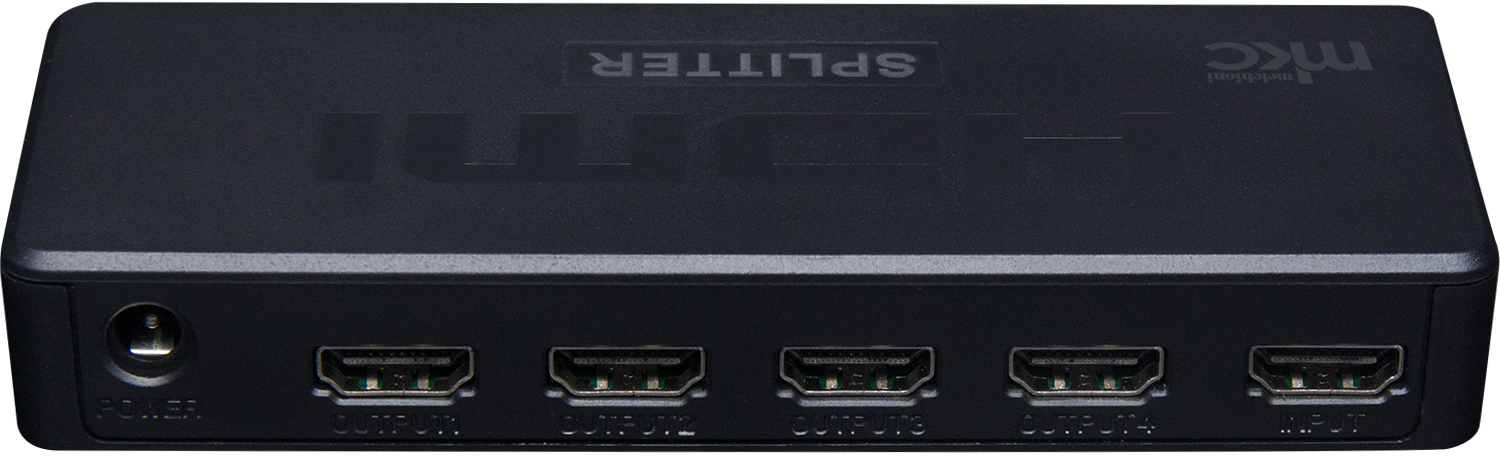

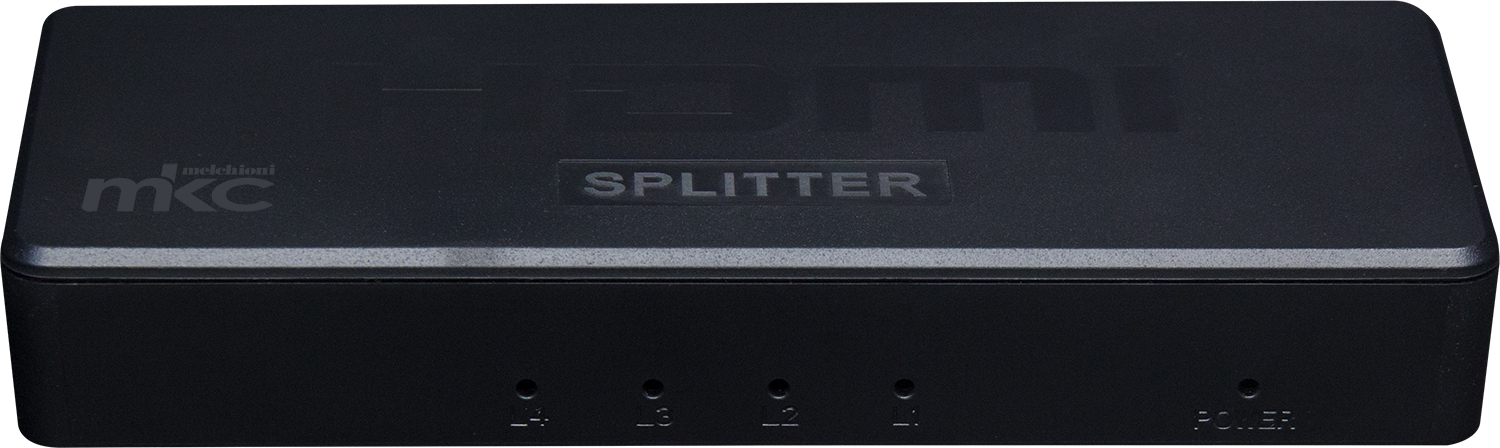

This 4K HDMI 1x4 splitter allows you to split the incoming HDMI audio-video signal into 4 HDMI output signals with a maximum resolution of 3840x2160/30Hz. It enables you to display the source on four HDMI-compatible monitors, TVs, or projectors. Additionally, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal at its original resolution up to 3840x2160/30Hz.
Technical specifications
• Supports HD resolution up to 3840x2160/30Hz
• Supports Deep Color video format (8/10/12bit)
• Supports 3D video format
• Supports audio formats: DTS-HD/Dolby True HD/DTS/Dolby-AC3/DSD
• Bandwidth: 340MHz
• Maximum transmission speed: 3.4Gbps
• Input cable distance: 1080p resolution ≤15m / 4K resolution ≤8m using standard HDMI AWG26 cable
• Output cable distance: 1080p resolution ≤15m / 4K resolution ≤8m using standard HDMI AWG26 cable
• Maximum operating current: 1200mA
• Power type: DC5V/1A (USB-DC cable included)
If an external power supply is needed (not included), use a 5VDC 1A adapter.
• Operating temperature range: from -15° to +55° C
• Dimensions (L x W x H): 143x58x22mm
• Weight: 80g

Technical documents

External height of the product 22.00 mm
External length of the product 143.00 mm
External depth of the product 58.00 mm
Gross packaged weight 120.00 g
HDMI version 1.4b
Lead time in order confirmations Disponibile dalla settimana 2
Net weight of product 80.00 g
Number of Outputs 4
Material ABS
