4K 60Hz from pass-through HDMI + audio extractor model MK-HDC03 2.0
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
MK-HDC03 2.0 HDMI 4K passthrough with audio extractor
Item
149029727
Part No.
149029727
Ean
8006012367829
Manufacturer
MKC
Non disponibile
Description
This HDMI to HDMI + audio converter allows the separation of the audio output from the HDMI video signal with an output resolution of up to 4096x2160 / 60Hz. It enables connection to an audio system such as a stereo amplifier or a 5.1 CH Home Cinema AV receiver.

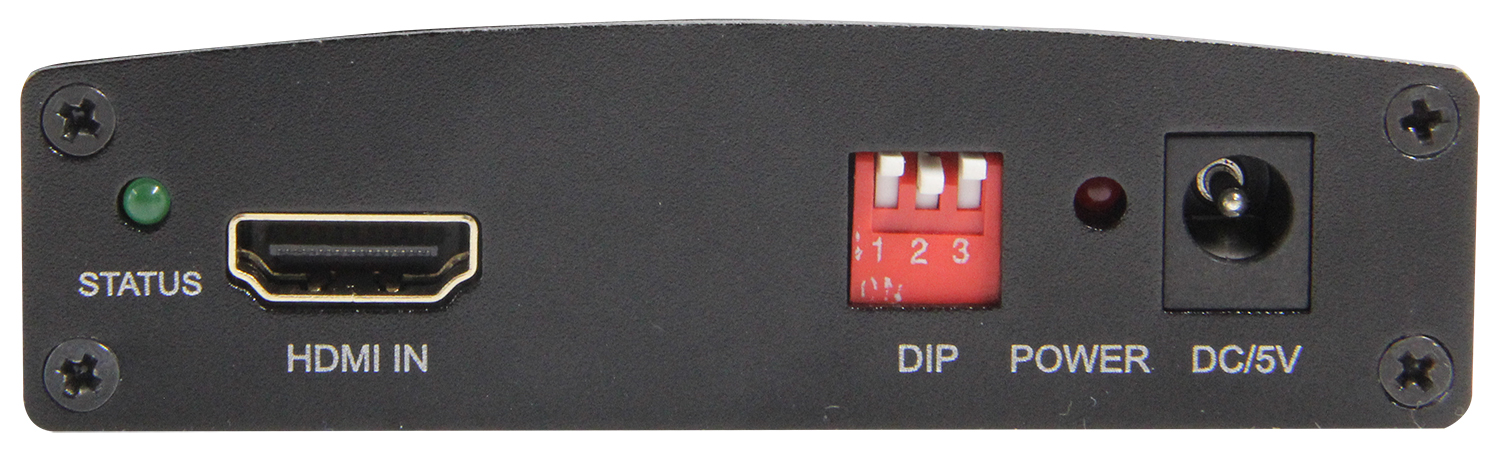

Thanks to the EDID function via 3 dip switches located on the back of the device, this separation can be combined in different ways based on the user's choices of video and audio output resolution:
• HDMI input video signal copy and digital audio + 2CH stereo audio
• 3D 4K60Hz video signal and 2CH stereo audio
• 3D 4K60Hz video signal and 5.1CH audio
• 2D 1080P video signal and 5.1CH audio
Features:
• HDMI version: 2.0
• HDCP version: 2.2
• HDR support
• Colour format support: YUV4:2:0/4:2:2/4:4:4 and RGB 4:4:4
• Deep Colour support: 8/10/12 bit
• Supports HDMI ARC and CEC control
• 3D video format support
• Maximum supported video resolution: 4096x2160 / 60Hz
• Symbol rate: 6G
• TMDS: 600MHz
• Standard HDMI cable: AWG26
• Supported HDMI cable version: 2.0
• HDMI input/output cable distance: up to 8m / 8m with resolution up to 1080p
• HDMI input/output cable distance: up to 3m / 5m with resolution up to 4K60Hz
• Power adapter: 5V / 1.5A
• Dimensions (LxWxH): 67x88x24mm
• Weight: 150g
Technical documents
| SKU | 149029727 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367829 |
| Eu Tariff Code (TARIC) | 85371098 |
| External Height | 24.00 mm |
| External length | 88.00 mm |
| External Width | 67.00 mm |
| Gross weight | 200.00 g |
| Manufacturer Part Number | 149029727 |
| Net weight | 150.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | MK-HDC03 2.0 HDMI 4K passthrough with audio extractor |
Technical documents
