4K 60Hz HDMI Splitter/Selector V2.0a 2IN x 2OUT model MK-SS2-2-V2.0
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0

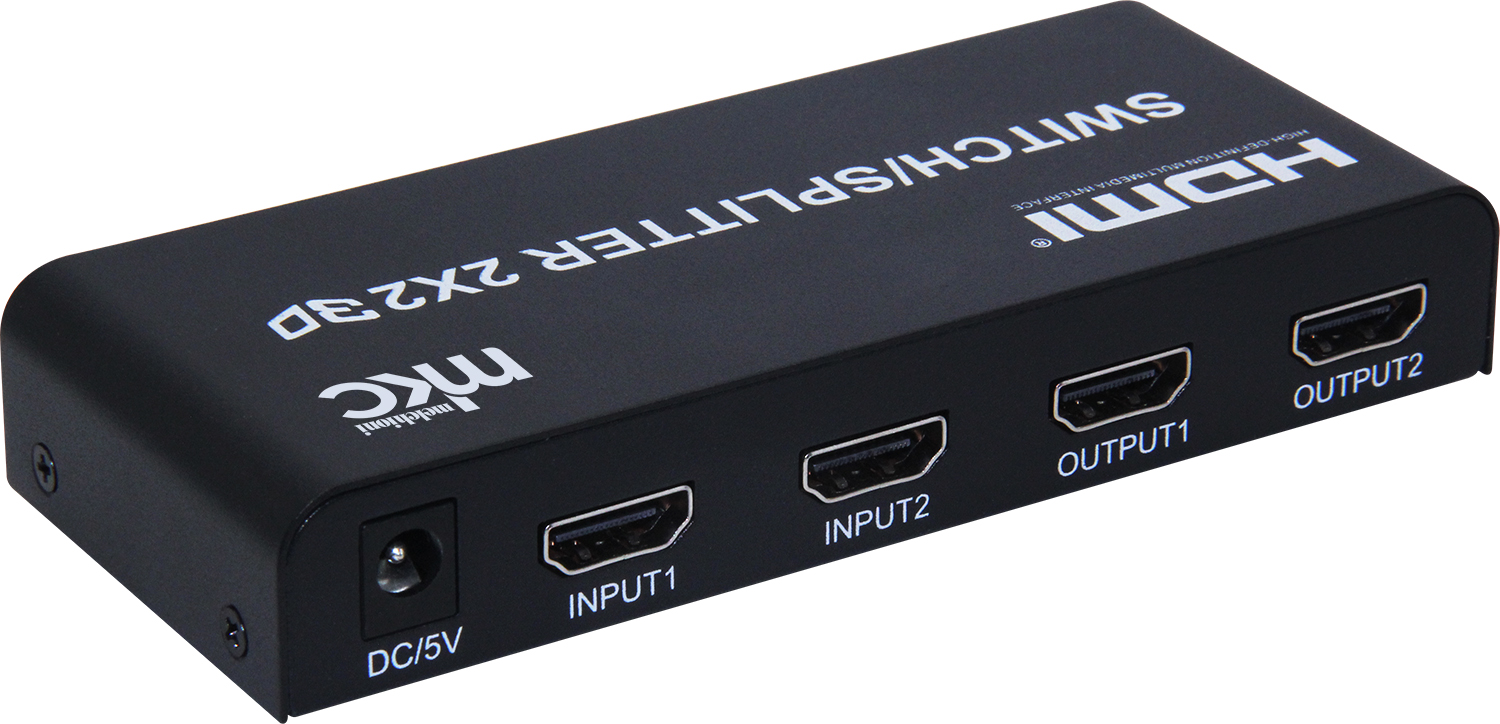

HDMI Splitter/Selector 2IN x 2OUT. 4K 60Hz Resolution V2.0a, HDCP 2.2
Item
149029715
Part No.
149029715
Ean
8006012367706
Manufacturer
MKC
Non disponibile
Description
This 4K UHD 2x2 HDMI splitter/selector, compatible with a 4K UHD input resolution of 3840x2160/60Hz, allows you to split 2 HDMI Audio Video input signals into 2 output signals with different AV formats (4K and Full HD simultaneously), enabling you to view the two sources on two HDMI HD or 4K UHD compatible monitors, TVs, or projectors.
Features
• HDMI Version: 2.0a
• HDCP Version: 2.2
• Supports 4K / 60Hz RGB/YUV 4:4:4 resolution
• Downscaling function: separate 1080p and 4K resolutions on the two HDMI outputs
• HDMI resolution: up to 3840 * 2160 / 60Hz
• Supports video format: 8/10/12bit Deep color
• Supports audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Maximum bandwidth: 600MHz
• Maximum transmission speed: 6Gbps
• Input cable distance: 1080p resolution ≤20m / 4K resolution ≤10m (standard HDMI AWG26 cable)
• Output cable distance: 1080p resolution ≤20m / 4K resolution ≤10m (standard HDMI AWG26 cable)
• Maximum operating current: 300mA
• Power adapter format: AC input 100V-240V 50/60Hz – DC output 5V/1.5A
• Operating temperature range: from -15° to +55°
• Dimensions (L x W x H): 128x53x20mm
• Weight: 140g
Package includes
• 1 x HDMI Splitter/Selector
• 1 x Power adapter
• 1 x User manual

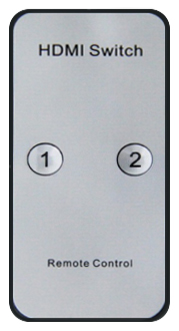

• 1 x Remote control
Technical documents
| SKU | 149029715 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367706 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 20.00 mm |
| External length | 128.00 mm |
| External Width | 53.00 mm |
| Gross weight | 200.00 g |
| Manufacturer Part Number | 149029715 |
| Net weight | 140.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Splitter/Selector 2IN x 2OUT. 4K 60Hz Resolution V2.0a, HDCP 2.2 |
