HDMI Splitter 1 IN x 2 OUT, 4K 60Hz Resolution V2.0, HDCP 2.2 with EDID Function
Item
149029712
Part No.
149029712
Ean
8006012367676
Manufacturer
MKC
Non disponibile
Description

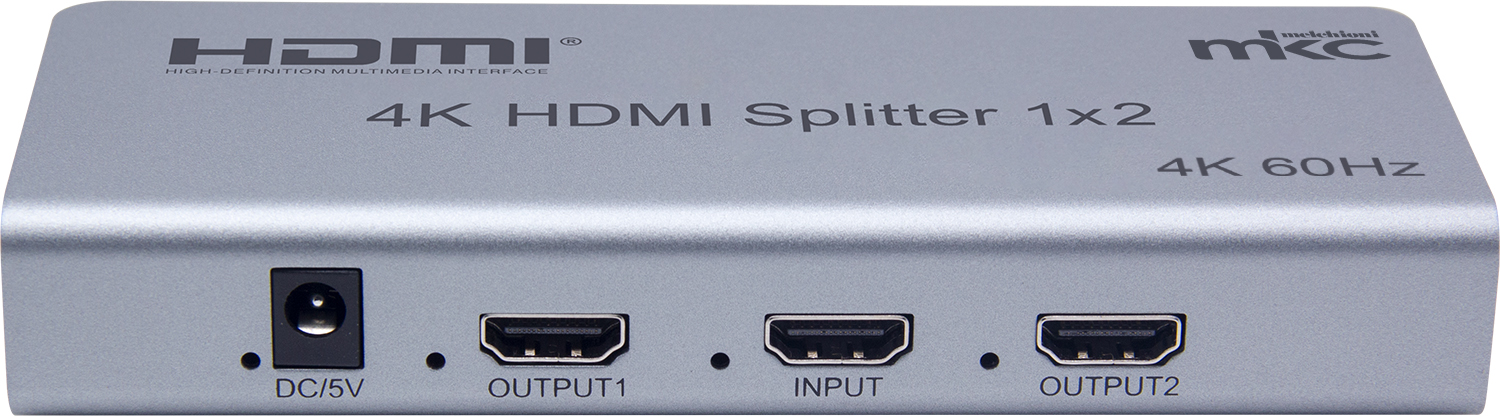

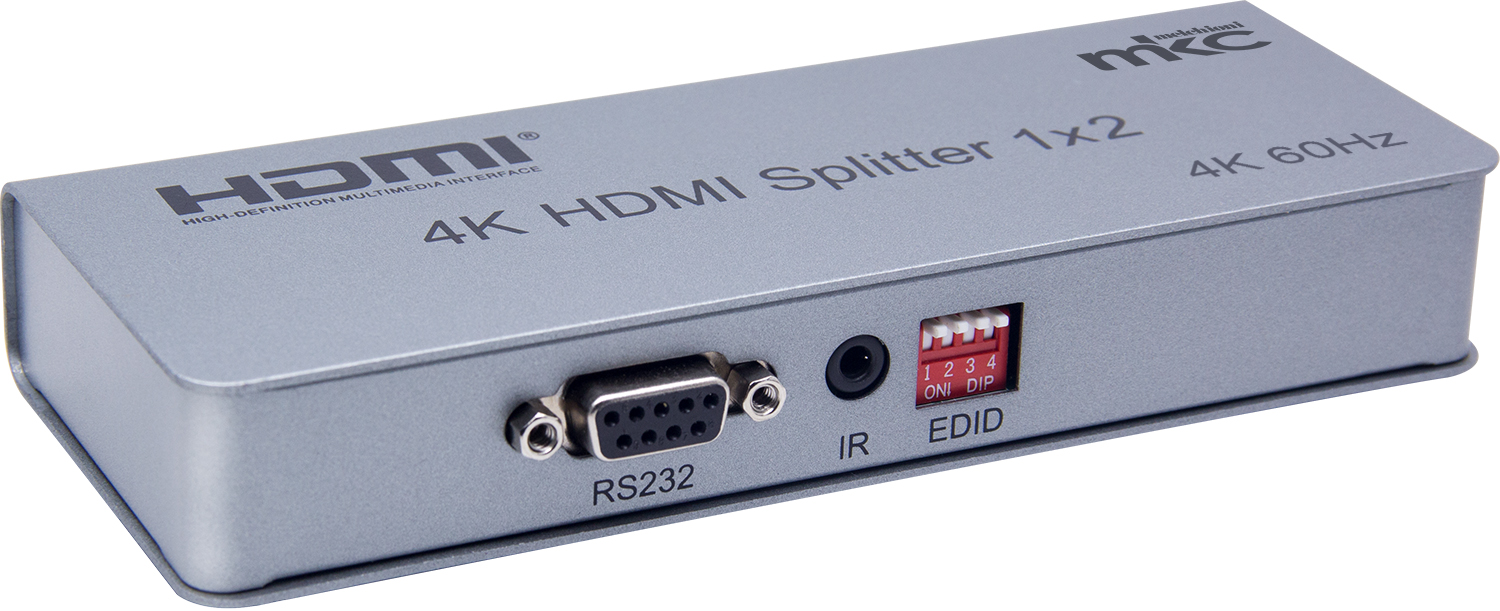

This 4K UHD 1x2 HDMI splitter, compatible with a 4K UHD input resolution of 3840x2160/60Hz, allows the HDMI audio-video input signal to be split into 2 output signals with different AV formats, enabling the source to be displayed on two HDMI 4K UHD compatible monitors, TVs, or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Equipped with HDMI version 2.0 and HDCP version 2.2 protocol, it supports UHD video signals 3840x2160/60Hz and features: 3D, HDR, HDMI CEC, and EDID via dip switches.
Equipped with an EDID function with eight selectable modes
Thanks to the EDID function via 4 dip switches located on the back of the device, it is possible to choose the audio and video output format based on installation needs:
• Copy HDMI input up to 4K 60Hz
• Activate HDR function
• Download via RS232 Interface
• 2D video 4K 30Hz
• 2D video 4K 30Hz
• 2D video 4K/60Hz (HDR)
• 3D video 1080p audio 2CH
• 2D video 1080p audio 2CH
• 2D video 1080p audio 5.1CH
Features
• HDMI version: 2.0
• HDCP version: 2.2
• HDR support
• EDID management support
• 3D video format support
• HDMI CEC support (output 1 only)
• HDMI resolution: up to 3840 x 2160 / 60Hz
• Supports video format: 8/10/12bit Deep colour
• Supports audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Maximum bandwidth: 600MHz
• Maximum transmission rate: 6Gbps
• Input cable distance: 1080p resolution ≤8m / 4K resolution ≤8m (standard HDMI cable AWG26)
• Output cable distance: 1080p resolution ≤8m / 4K resolution ≤8m (standard HDMI cable AWG26)
• Maximum operating current: 1A
• Power adapter format: input AC 100V-240V 50/60Hz – output DC5V/1.5A
• Operating temperature range: from -15° to +55°
• Dimensions (L x W x H): 154x60x24mm
• Weight: 335g
Package includes
• 1 x HDMI splitter
• 1 x Power adapter
• 1 x User manual
Technical documents
| SKU | 149029712 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367676 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 24.00 mm |
| External length | 154.00 mm |
| External Width | 60.00 mm |
| Gross weight | 360.00 g |
| Manufacturer Part Number | 149029712 |
| Net weight | 335.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Splitter 1 IN x 2 OUT, 4K 60Hz Resolution V2.0, HDCP 2.2 with EDID Function |
