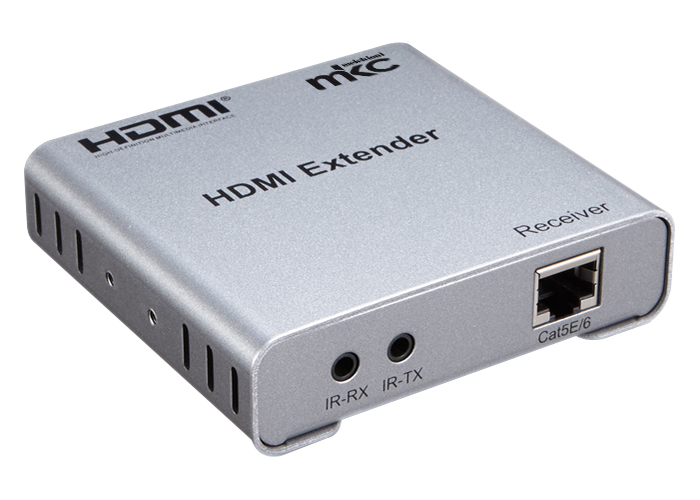

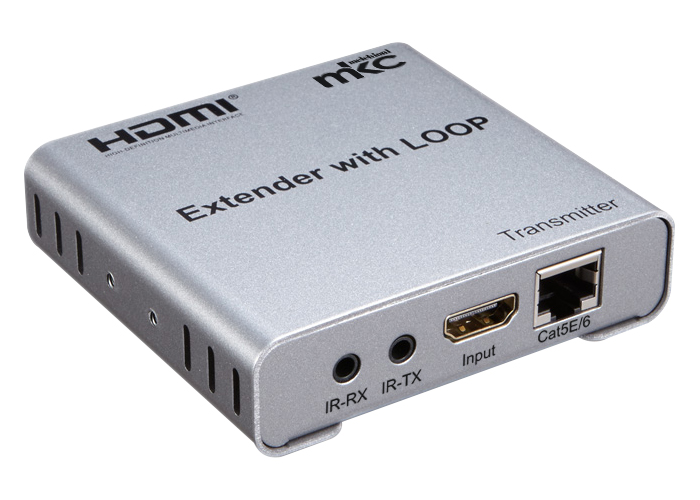

4K HDMI Extender up to 100m with HDMI Loop-Out, model MK-100P
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 100m
Item
149029701
Part No.
149029701
Ean
8006012367553
Manufacturer
MKC
Non disponibile
Description
This extender uses a single Cat5e or Cat6 cable (recommended) instead of HDMI to transmit high-definition signals up to 100 metres. The device offers solutions for noise, space, and security issues, information distribution, presentations in conference rooms, command and control centres, school and corporate training, and HD signal distribution in domestic and professional installations.
Features
• Supports HDMI 1.4b.
• Supports local HDMI loop-out.
• Supports long-distance transmission up to 100m.
• Low power consumption, low operating temperature, and high security.
Technical specifications:
• Length of CAT5e/CAT6 cable between RX and TX: up to 100 metres.
• Supported HDMI input resolution: 4K/1080p/720p/576p/576i/480p/480i.
• Supported HDMI output resolution: 4K/1080p/1080i/720p/576p/576i/480p/480i.
• Bandwidth: 340MHz.
• Transmission speed: 3 x 3.4Gbps.
• Input video signal: 0.5 ~ 1.5 V p-p.
• DDC output signal: 5 Volt p-p (TTL).
• HDMI input cable distance: standard HDMI cable AWG26 ≤10m.
• HDMI output cable distance: standard HDMI cable AWG26 ≤10m.
• TX maximum operating current: 350mA.
• RX maximum operating current: 200mA.
• Power adapter format: AC input 100-240V 50/60Hz - DC output 5V/1.5A.
• Operating temperature range: -15/+55°C.
• Operating humidity range: 5% to 90% (non-condensing).
• Dimensions (LxWxH): 81 x 87.5 x 23.5mm.
• TX weight: 210g.
• RX weight: 200g.
Package includes:
• 1 x Transmitter.
• 1 x Receiver.
• 2 x IR cables.
• 2 x 5V/1.5A power adapters.
• 1 x User manual.
Technical documents
| SKU | 149029701 |
| AVG leadtime (calendar days) | 120 |
| Country of origin | CN CHN CHINA |
| Ean Number | 8006012367553 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 23.50 mm |
| External length | 81.00 mm |
| External Width | 87.50 mm |
| Gross weight | 460.00 g |
| Lead time in order confirmations | Disponibile dalla settimana 38 |
| Manufacturer Part Number | 149029701 |
| Net weight | 410.00 g |
| Input/output number | 1/1 |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 100m |
| USB presence | No |
| Material | Metal |
