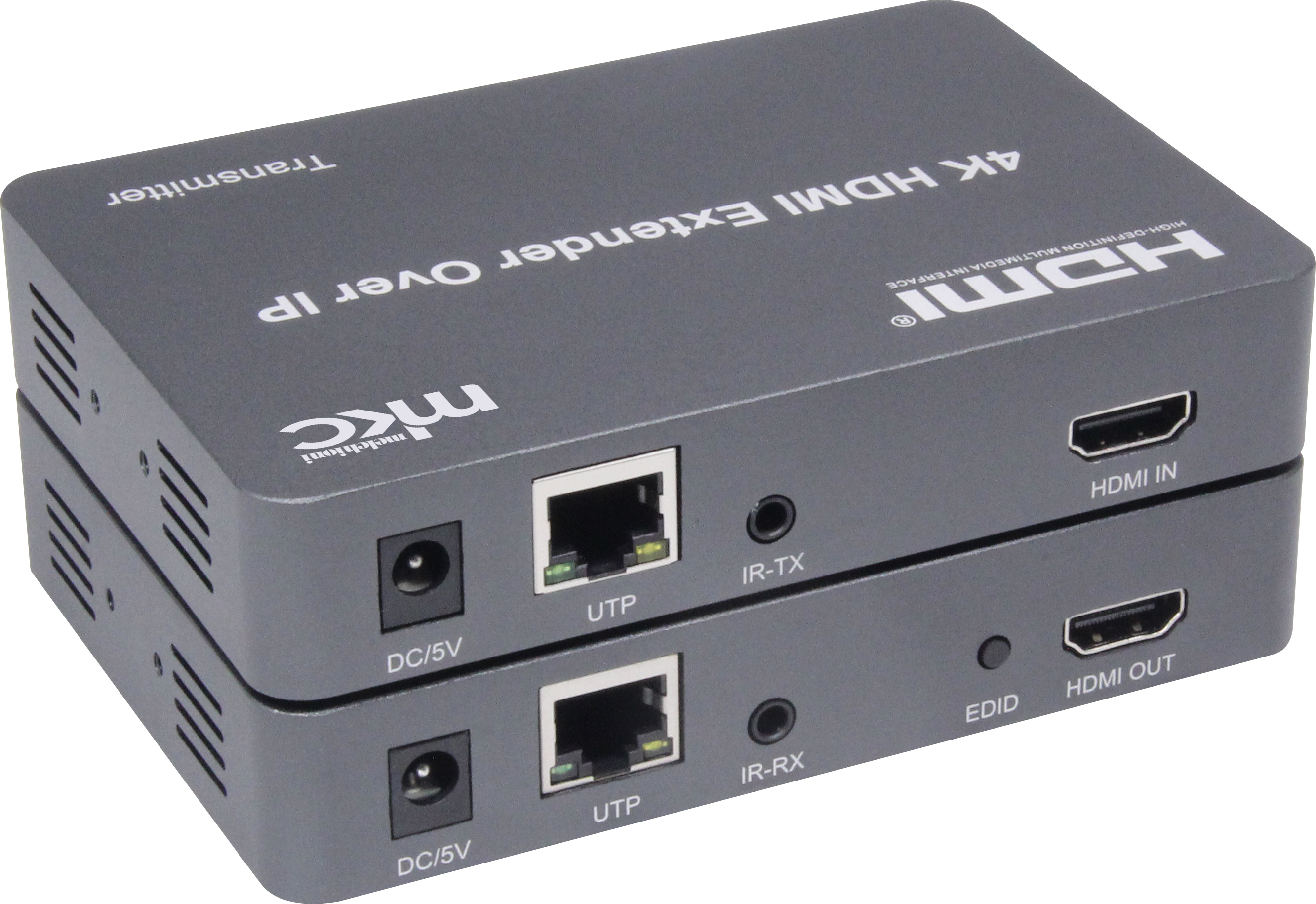

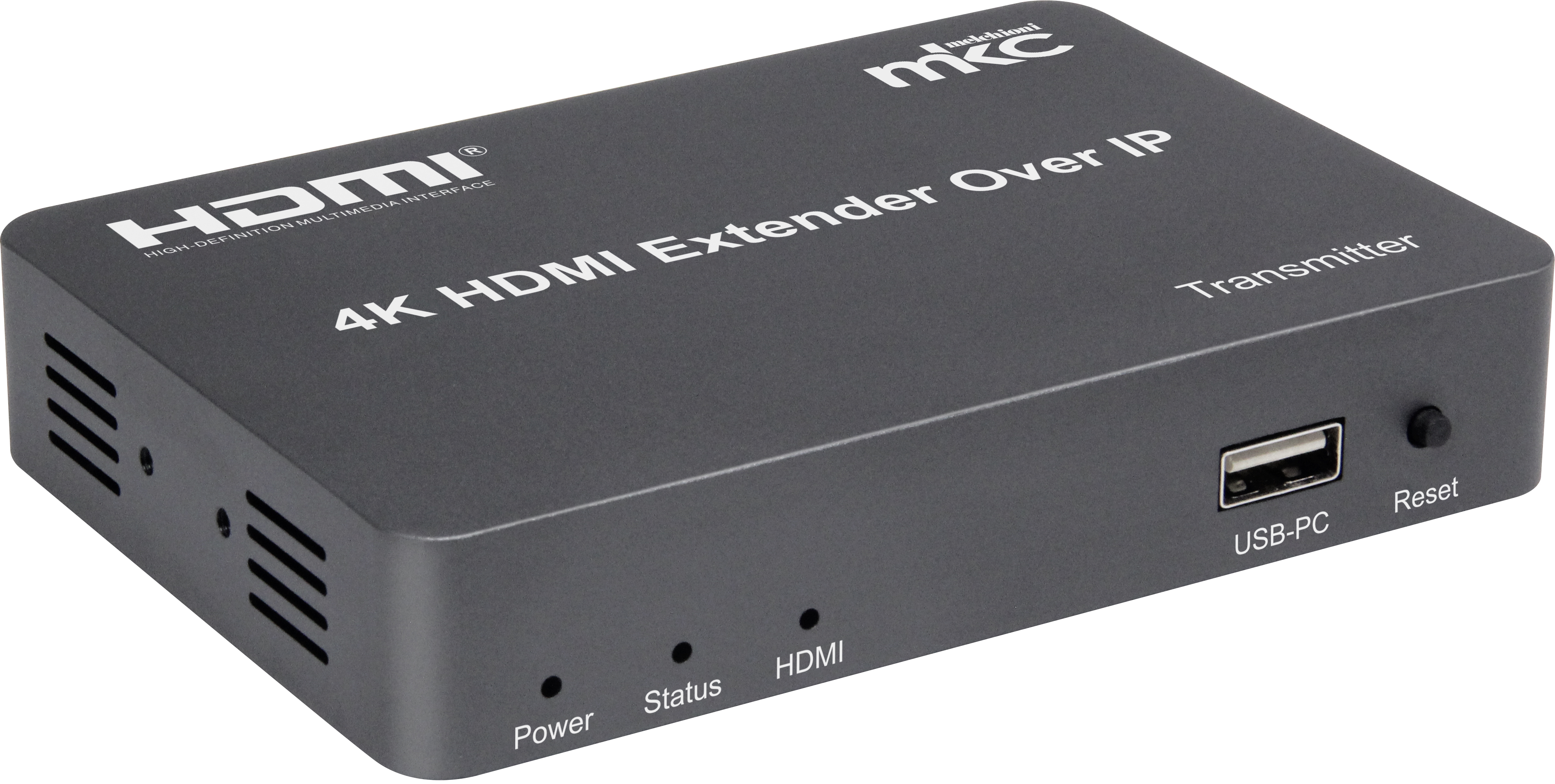

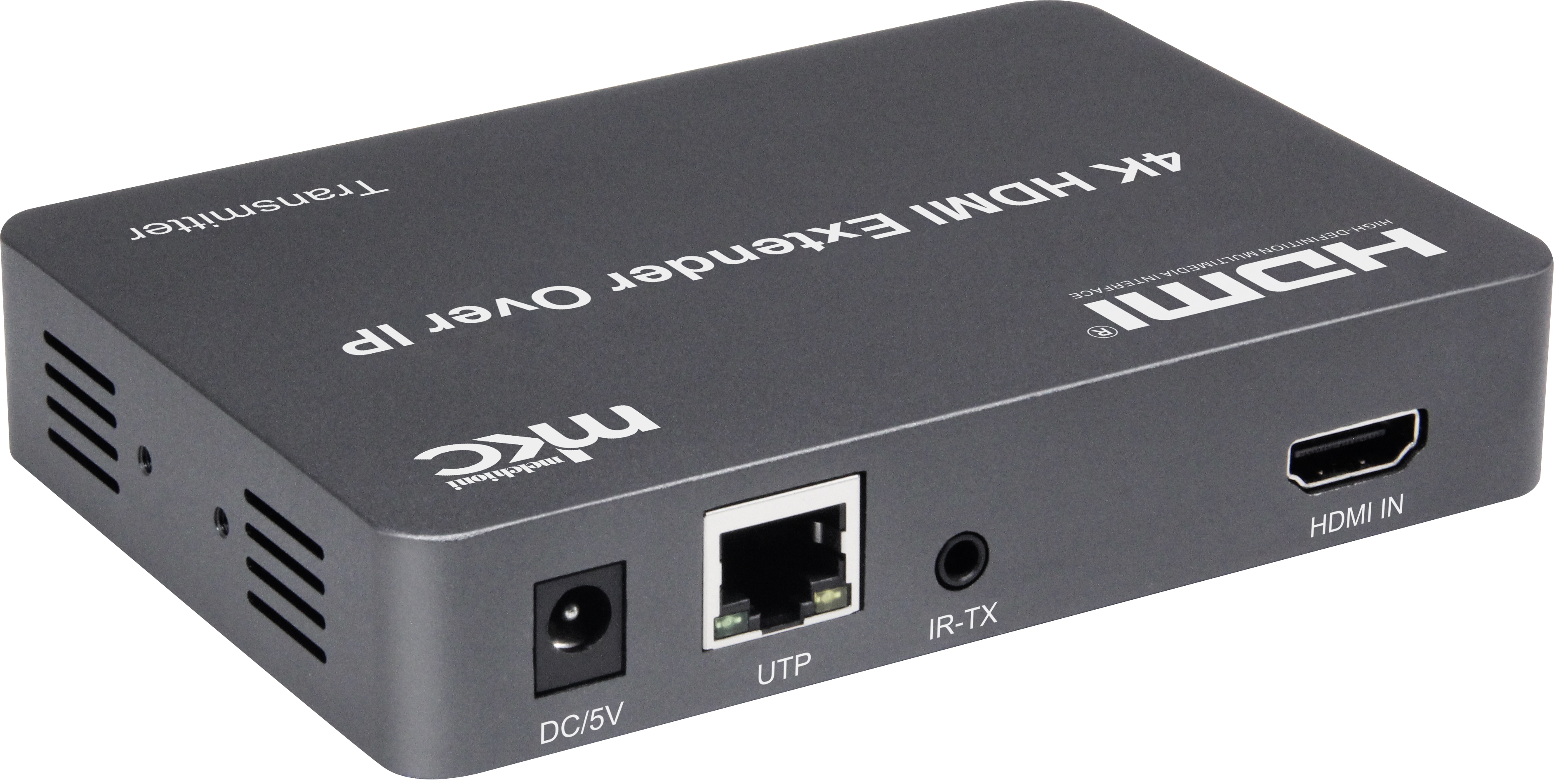

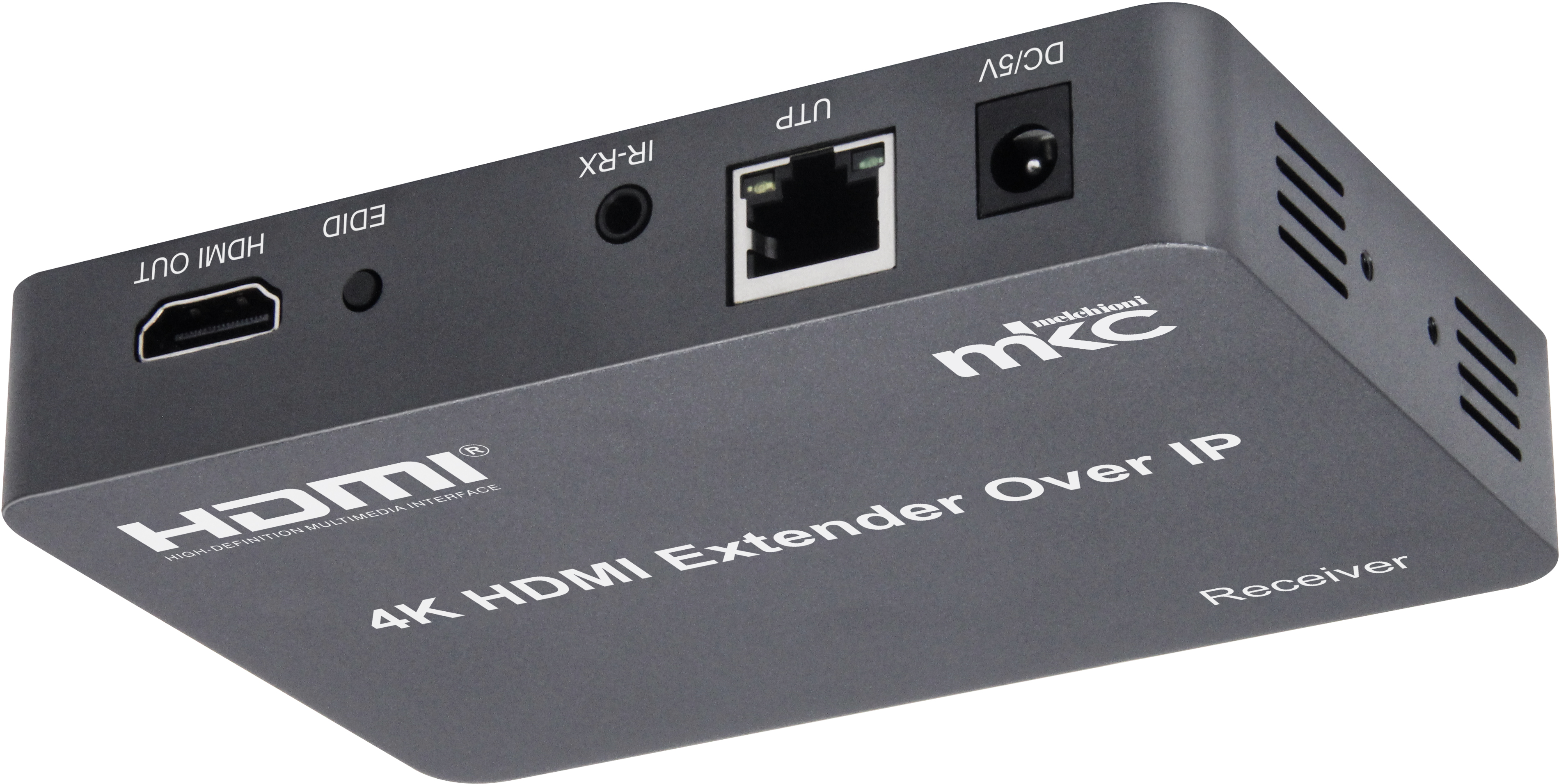

4K HDMI Extender up to 150m model MK-ES150KVM TX+RX
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 1520m. Cascading function for connecting multiple receivers.
Item
149029706
Part No.
149029706
Ean
8006012367607
Manufacturer
MKC
Non disponibile
Description
The 150m 4K HDMI IP extender can transmit high-definition 4K HDMI video from DVD players, PCs, and other devices via CAT5e/6 cable (recommended), with a maximum distance of up to 150 metres and support for 4Kx2K @ 30Hz. It conveniently transmits HDMI audio and video sources through point-to-point, point-to-multipoint, and daisy chain connection modes. It can be used in conference rooms, squares, stations, school and corporate training, HD signal distribution in home and professional installations. Additionally, multiple receivers can be connected in cascade to a single transmitter. Each receiver is supported by an IR extender to control the source via remote control. Mouse and keyboard support for remote source management is included.
Features
• HDMI version: 1.4b
• Point-to-point or point-to-multipoint daisy chain connection mode with multiple receivers
• Support for mouse and keyboard for remote source management
• Support for unidirectional IR extender
• Lossless video compression, HD display support
• Minimalist design, fully plug and play
Technical specifications
• HDMI version: 1.4b
• Supported resolution: up to 3840x2160/30Hz
• Supports video format: 8/10/12-bit deep colour
• Audio format: stereo / 7.1CH
• Video latency: ＜100us
• Maximum working current: TX 420mA - RX 480mA
• Dimensions (LxWxH): 123×85×23mm
• Weight: TX: 204g - RX: 207g
• Power adapter format: AC input (50 Hz, 60 Hz) 100 V-240 V; output: DC5V / 1.5A
• Operating temperature/humidity: 0 ℃ ～ 55 ℃ / 10% - 80% RH (non-condensing)
• Storage temperature/humidity: -10 ℃ ～ 75 ℃ / 5% - 90% (non-condensing)
Package contents:
• 1 x Transmitter
• 1 x Receiver
• 2 x 5V/1.5A power adapters
• 2 x IR cables
• 1 x 1.5m male-to-male USB cable
• 1 x User manual
Technical documents
| SKU | 149029706 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367607 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 24.00 mm |
| External length | 124.00 mm |
| External Width | 85.00 mm |
| Gross weight | 450.00 g |
| Manufacturer Part Number | 149029706 |
| Net weight | 411.00 g |
| Input/output number | 1/1 |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 1520m. Cascading function for connecting multiple receivers. |
| USB presence | Yes |
| Material | Metal |
