Description

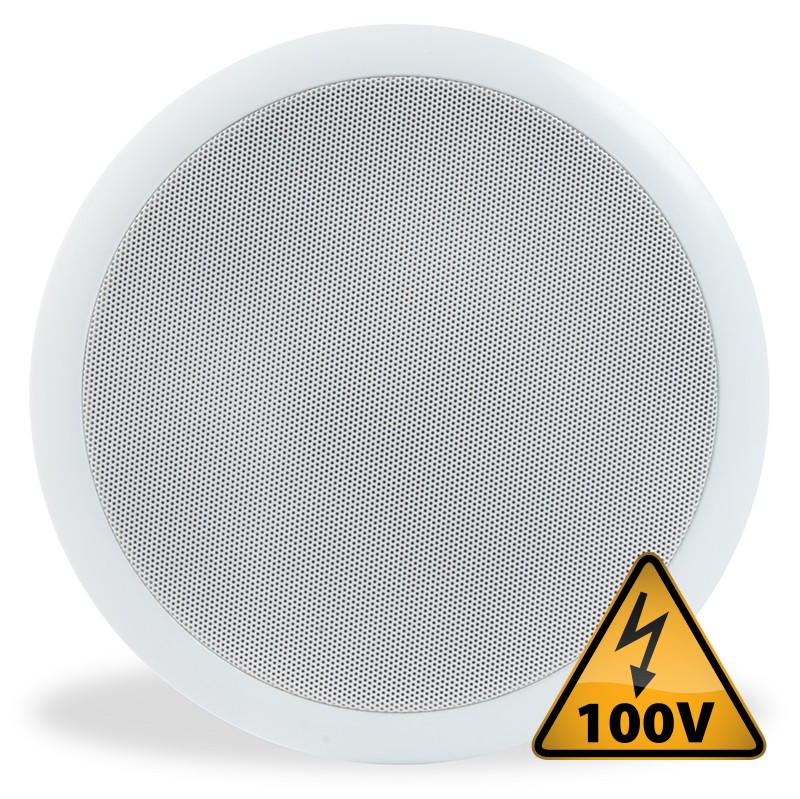

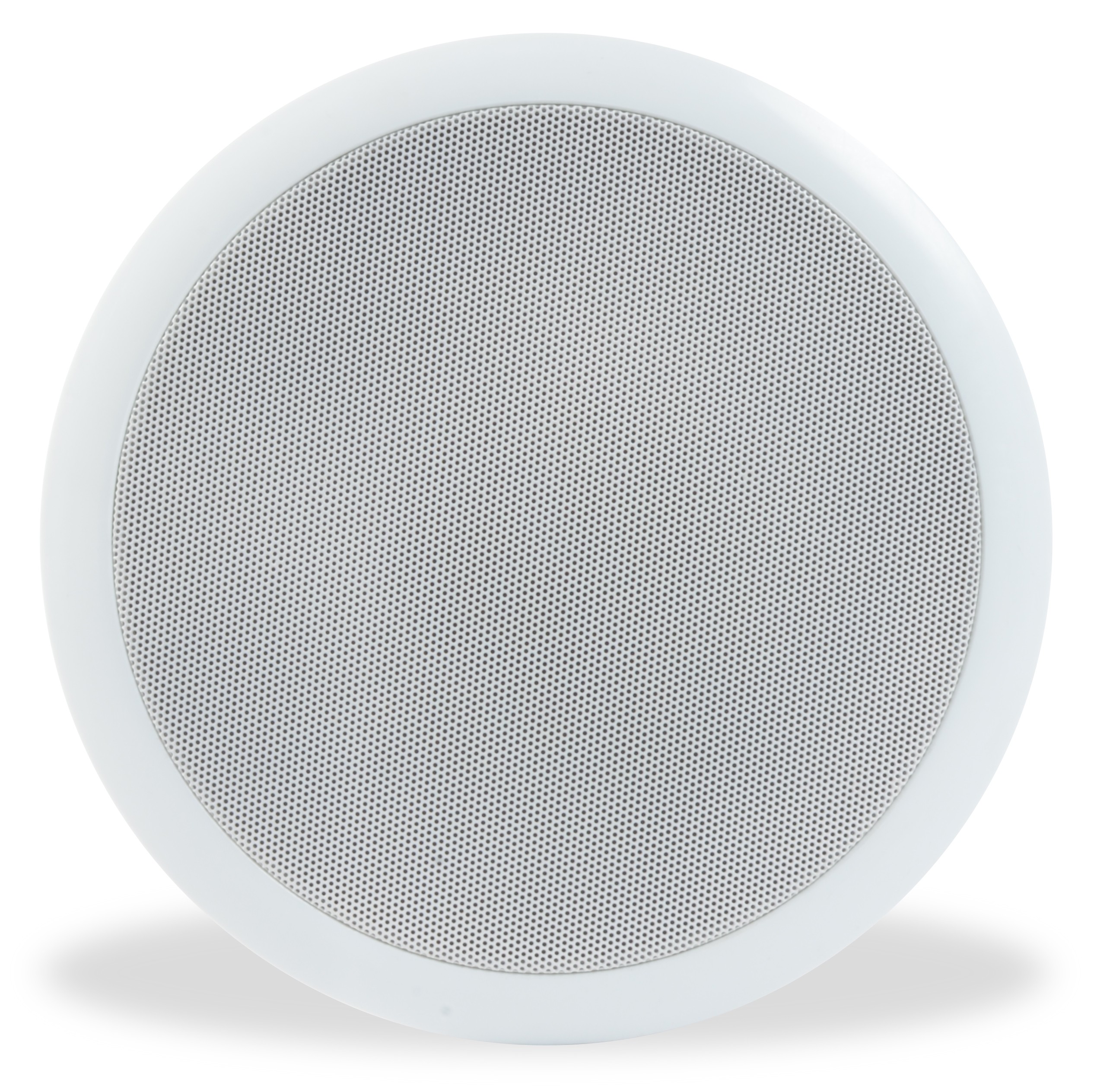

Ceiling recessed speaker for installations with 100V line or 8Ω, providing good sound reproduction quality for both music and speech. The speaker housing is made of ABS and is suitable for installation in restaurants, bars, and showrooms, where uniform and high-quality dispersed sound is required.
Features:
• Brand: Power Dynamics
• Excellent sound quality
• Woofer diameter: 5"

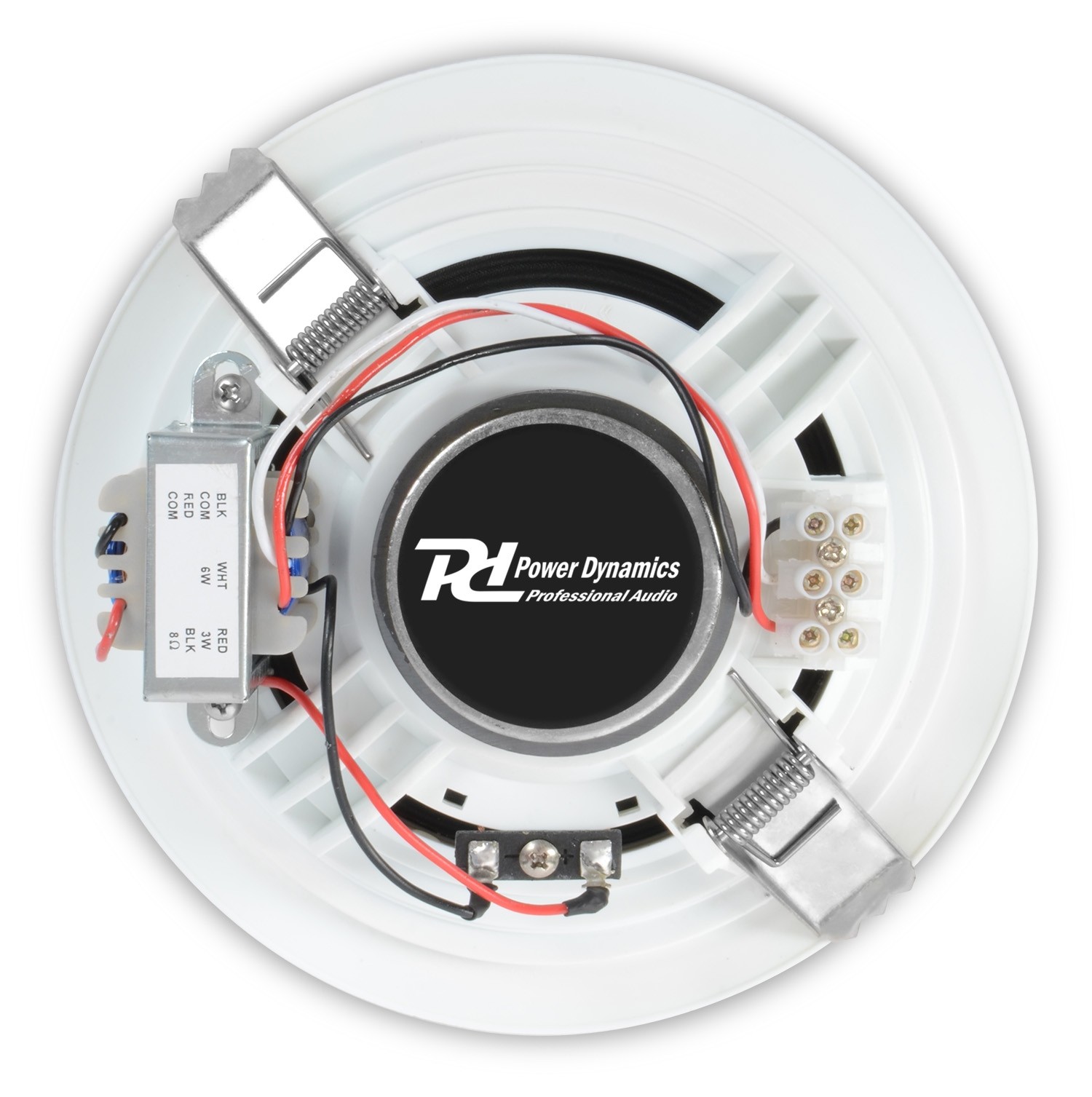

• Output power: 3W or 6W (terminal connection)
• Impedance: 100V - 8Ω
• Frequency response: 90Hz - 16kHz
• SPL: 1W / 1m 89dB

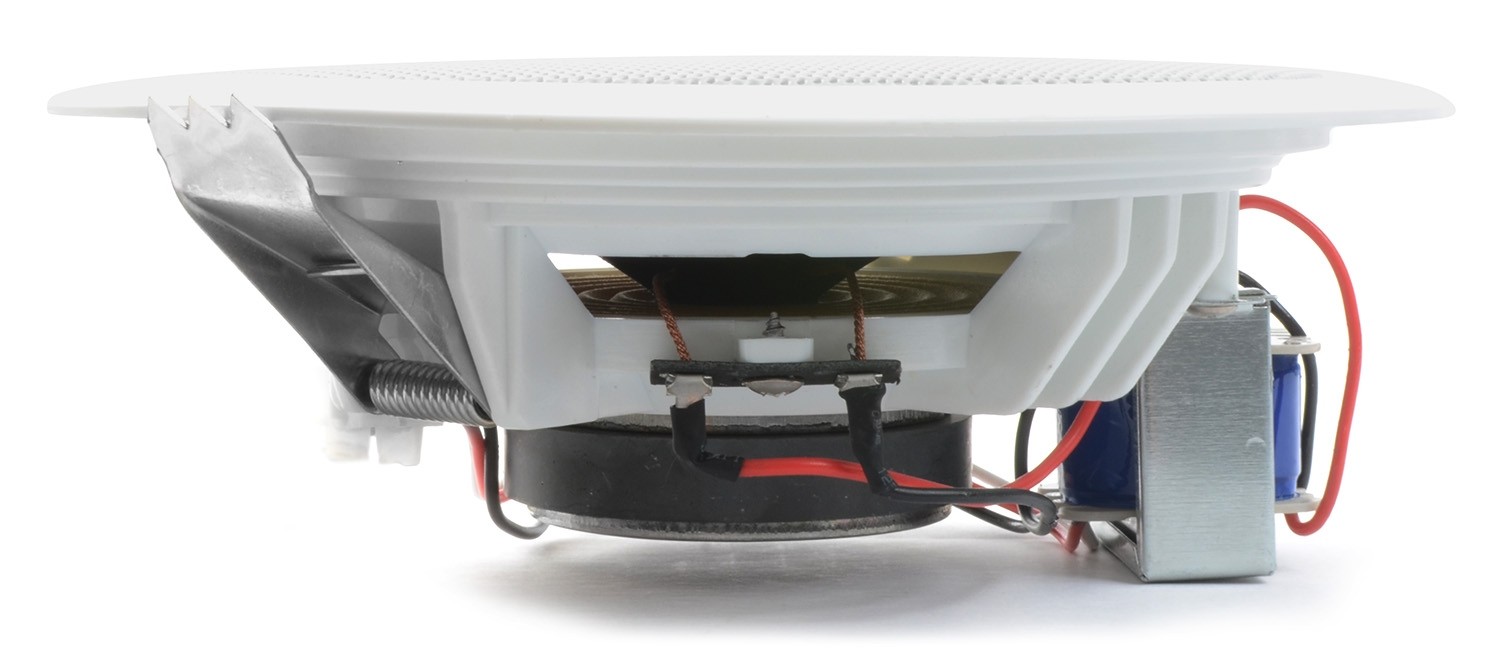

• Minimum mounting depth: 58mm
• Mounting hole diameter: 150mm
• Dimensions (Dia. x H): 175 Ø x 70 mm
• Weight: 0.6Kg.
Code: 550923190
EAN: 8715693274141

Technical documents

Configuration Controsoffitto
External height of the product 7.00 mm
External length of the product 17.50 mm
External depth of the product 17.50 mm
Gross packaged weight 0.72 kg
Lead time in order confirmations Disponibile dalla settimana 49
Microphone presence No
Net weight of product 0.60 kg
Potenza 100 volt 6/3
potenza_nominale 6.00 W
Colour White
Impedance 100V/8Ohms
Number of poles (Connectors) 2
Protection rating IP N/A (Not Applicable o Not Available)
Siren presence No

Technical documents

Frame 17 (1)
Frame 18 (1)
Frame 19 (1)
Frame 20 (1)
Frame 21 (1)
