Description

Description

Reliable audio integration for fixed installation projects. The AVIO-A-2IN-EB offers a professional solution for integrating analogue audio sources into Dante®-based networks. With Euroblock connections and PoE power supply, the adapter is specifically designed for use in fixed installations – perfect for AV systems companies, specialised electrical contractors, and design studios. Dante® AVIO analogue input adapter (2 channels) Euroblock inputs for simple and secure wiring Dante® network connection (RJ45), compatible with Dante® and AES67 PoE power supply (802.3af class 1), no separate power unit required Adjustable input level: +4/0 dBu/0/-10 dBV (via Dante® Controller) Frequency range 20–20,000 Hz Impedance 20 kΩ (balanced), 10 kΩ (unbalanced) Sampling frequency 44.1/48/96 kHz, 16/24/32 bit Supports Dante® Domain Manager for IT-standard compliant management and security Robust casing, suitable for wall or rack mounting Typical application scenarios:
  • AV installations in conference rooms, classrooms, and places of worship
  • Integration of analogue players, microphone receivers, or DSPs
  • Expansion of existing Dante® networks with analogue sources
The Dante® brand and any Dante® software integrated in these products are licensed by Audinate Pty Ltd.

Technical features

SKU 550403782
AVG leadtime (calendar days) 30
Country of origin TW TWN TAIWAN
Ean Number 9353345000091
Eu Tariff Code (TARIC) 0
Gross weight 0.21 kg
Model AVIO-A-2IN-EB
Net weight 0.15 kg
Selling quantity 1
Selling UoM Pezzo

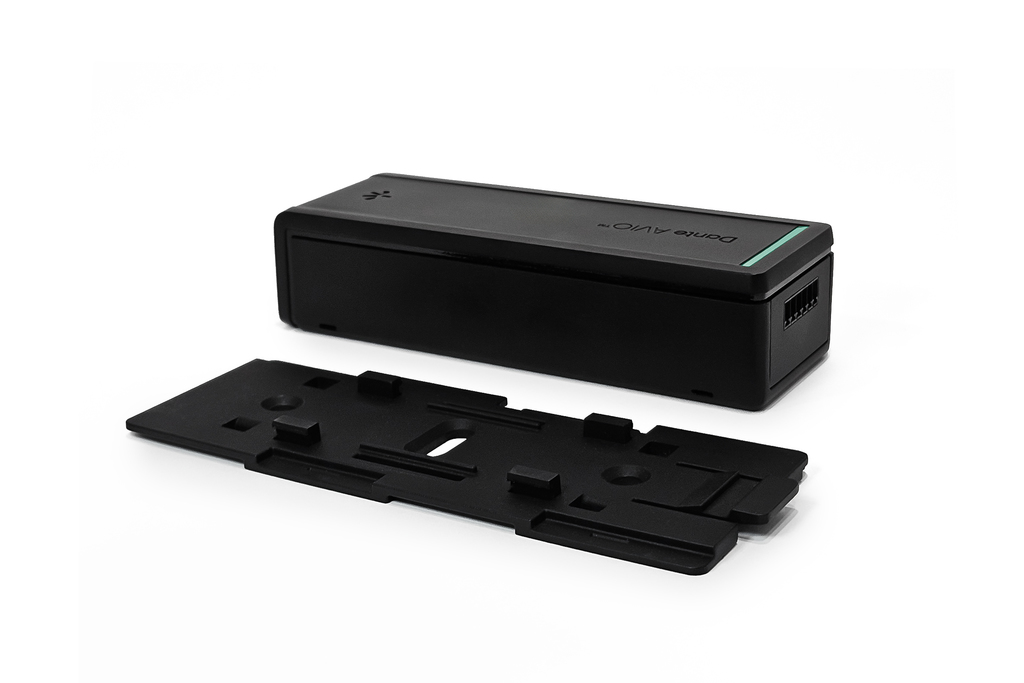

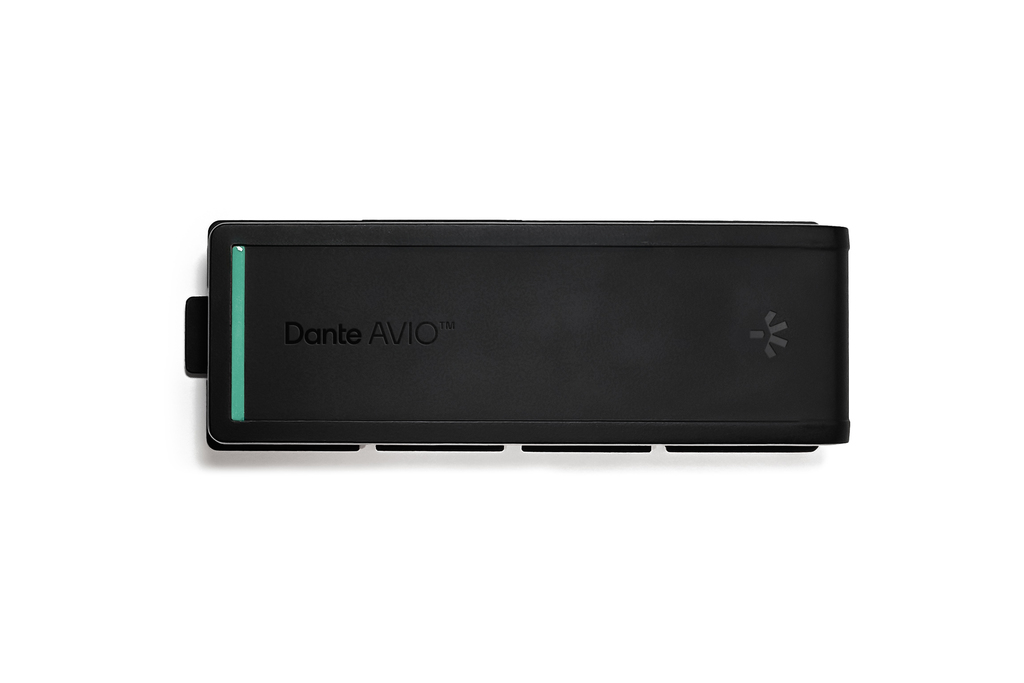

Short Description AVIO-A-2IN-EB - Dante AVIO Install 2 Ch Analog Input Adapter

Technical documents

Frame 17 (1)
Frame 18 (1)
Frame 19 (1)
Frame 20 (1)
Frame 21 (1)
