C.A 1821 Thermometer TC 1 input (K-J-T-E-N-R-S)
Articolo
810200475
Part Number
810200475
EAN
3663653000932
Produttore
AMRA Chauvin Arnoux
Tempo medio di consegna
10 giorni
Quantità di vendita
1
Unità di misura di vendita
Each
Pezzi in confezione
1
Non disponibile
Description
Advantages
Compact and magnetized for fixed or portable use
Wide backlit display
Recording up to 1 million points
Communicating via USB or Bluetooth
Alarms and recording trigger on alarms
Battery life of up to 3 years
IP54 casing
Data Logger Transfer software with automatic report generation
Description

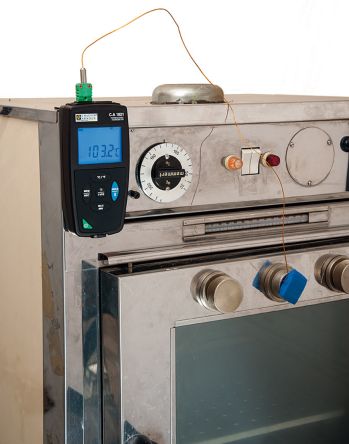

Compact and magnetized for fixed or portable use, the C.A 1821 is an accurate, versatile, long-lasting thermometer. Equipped with a wide backlit display, it offers all the useful functions for work in the field, such as Min, Max, Hold, as well as spot or programmable recording possibilities.
Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by means of the Data Logger Transfer software.
Additional specifications:
- 1 input for K, J, T, N, E, R or S thermocouple.
- Measurement range: - 210 °C to +1,767 °C
- Intrinsic uncertainty:
(J, K, T, N, E) θ ≤ - 100 °C: ± (0.2% R + 0.6 °C)
(J, K, T, N, E) -100 °C < θ ≤ + 100 °C : ± (0.15% R + 0.6 °C)
(J, K, T, N, E) +100 °C < θ: ± (0.1% R + 0.6 °C)
(R, S) θ ≤ + 100 °C : ± (0.15% R + 1.0 °C)
(R, S) +100 °C < θ: ± (0.1% R + 1.0 °C)
- Resolution: 0.1 °C or 1 °C
- Min, Max, Hold functions, Alarms / °C or °F / Backlighting
- Recording up to 1 million points
- USB or Bluetooth interfaces
- 1,000-hour battery life in portable mode / 3 years for recording (15-minute measurement interval)
- IP54 magnetized casing
- Miniature female compensated connector
- Dimensions: 150 x 72 x 32 mm
- Weight: 260 g with batteries
Technical documents
| Autorange | No |
| Buzzer | No |
| C/F temperature scale selector | No |
| Display presence | No |
| Used with | P01654252 |
| Laser | No |
| Measurement of capacitance | No |
| Detection | Thermal |
| TRMS | No |
| nr_misure_memorizzabili | 1000000 |
| Power supply type | 3 batterie AA |
| Protection rating IP | IP54 |
| SIAE | 0 |
