Description

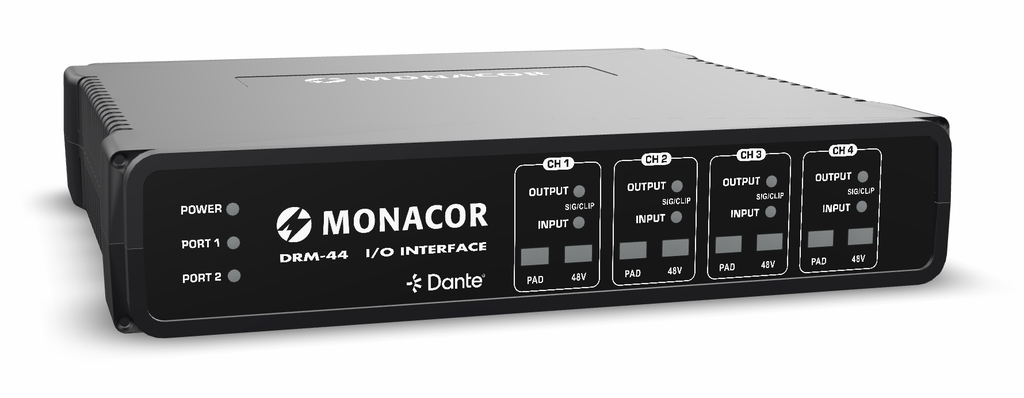

Dante 4 x 4 Matrix. Bidirectional Analog/Dante® Bridge with 4 balanced analogue inputs and 4 balanced analogue outputs over network (Dante®/AES67) for fixed installations. Integrated DSP audio processing on all channels: parametric EQ, compressors, delay, etc. 8×8 audio matrix for flexible routing and pre-mixing between inputs and outputs. Web server with graphical interface for easy configuration and control via network devices. Extremely high audio quality: signal-to-noise ratio > 120 dB, distortion rate < 0.003%. GPI/GPO connections (inputs/outputs) for controlling external devices or managing control signals (e.g. buttons, sensors, alarm systems). Flexible power supply: via included power adapter (24 V DC) or PoE (Power over Ethernet). 241 mm chassis (½ 19" rack unit) for rack mounting (bracket included).
Specifications:
• Description: Bidirectional Analog/Dante® Bridge
• Colour: Black
• Power supply: PoE or included power adapter
• Operating temperature range: 0-40 °C
• Dimensions:
• Weight: 1.4 kg
• Connections: Screw and plug terminals, 2 x RJ45
• Other features: Signal-to-noise ratio > 120 dB
• Distortion factor: < 0.003%
• Packaging unit: 1
• Package dimensions (L x W x D): 345 x 260 x 145 mm
• Gross weight: 2.62 kg
• Net weight: 1.23 kg

Technical documents

Bluetooth No
Gross weight 2.62 kg
USB Reader No
Net weight 1.23 kg
Number of zones (amplifiers) 4
Power (Watt) 0.00 W
Tuner Dab Plus No
Tuner fm No
Low Impedance Outputs No
Line Outputs NA
uscite_alta_impedenza No
wifi_audio No
Power rating (W) NA
