Full HD 1080p HDMI Selector 5IN x 1OUT mod. MK-DSW5
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Selector 5IN x 1OUT, Full HD 1080p, HDMI version 1.4a
Item
149029719
Part No.
149029719
Ean
8006012367744
Manufacturer
MKC
Non disponibile
Description
This Full HD 1080p HDMI 5x1 Selector with Full HD 1080p resolution allows switching between 5 HDMI ports on a single display terminal via the supplied remote control or buttons on the unit. The selector can also be positioned at the end of a long HDMI cable to regenerate the HDMI signal. It supports HD video formats including: 720p, 1080i, 1080p. Output support for a single high-definition display up to 1080p from multiple sources such as DVD players and satellite receivers, digital projectors, A/V receivers, digital decoders. Remote control included for HDMI input selection.
Features
• HDMI Version: HDMI 1.4a
• HDMI Resolution: 24/50/60fps / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
• Video colour format support: up to 36-bit Deep Colour
• Audio format support: DTS-HD / Dolby TrueHD / DTS / Dolby AC3 / DSD
• Maximum bandwidth: 250 MHz
• Maximum transmission speed: 2.5 Gbps
• Input cable distance: standard HDMI cable AWG26 ≤15m
• Output cable distance: standard HDMI cable AWG26 ≤25m
• Max operating current: 600mA
• Power adapter format. Input: AC (50 Hz, 60 Hz) 100 V-240 V; Output: DC 5V/1.5A
• Operating temperature range: from -15 to +55 ℃
• Dimensions (L x W x H): 178 x 58 x 20 (mm)
• Weight: 220 g
Package includes
• 1 x HDMI Selector

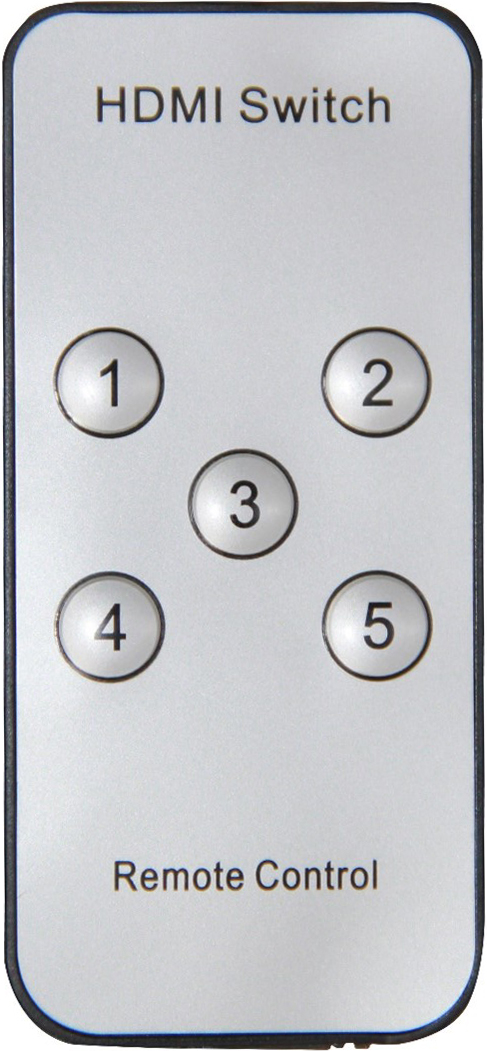

• 1 x IR Remote Control
• 1 x Power Supply
• 1 x User Manual
Technical documents
| SKU | 149029719 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367744 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 20.00 mm |
| External length | 178.00 mm |
| External Width | 58.00 mm |
| Gross weight | 260.00 g |
| Manufacturer Part Number | 149029719 |
| Net weight | 220.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Selector 5IN x 1OUT, Full HD 1080p, HDMI version 1.4a |
