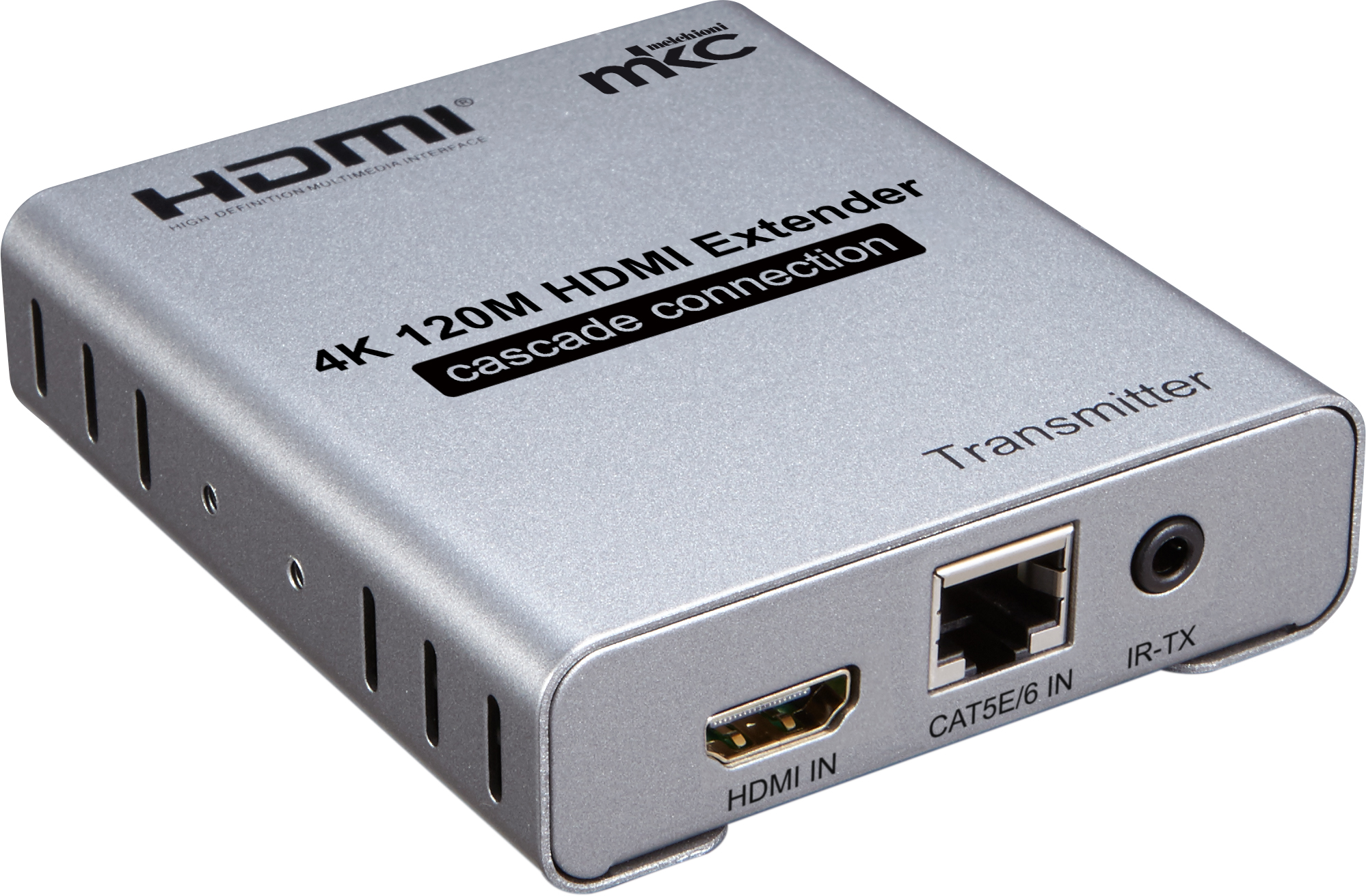

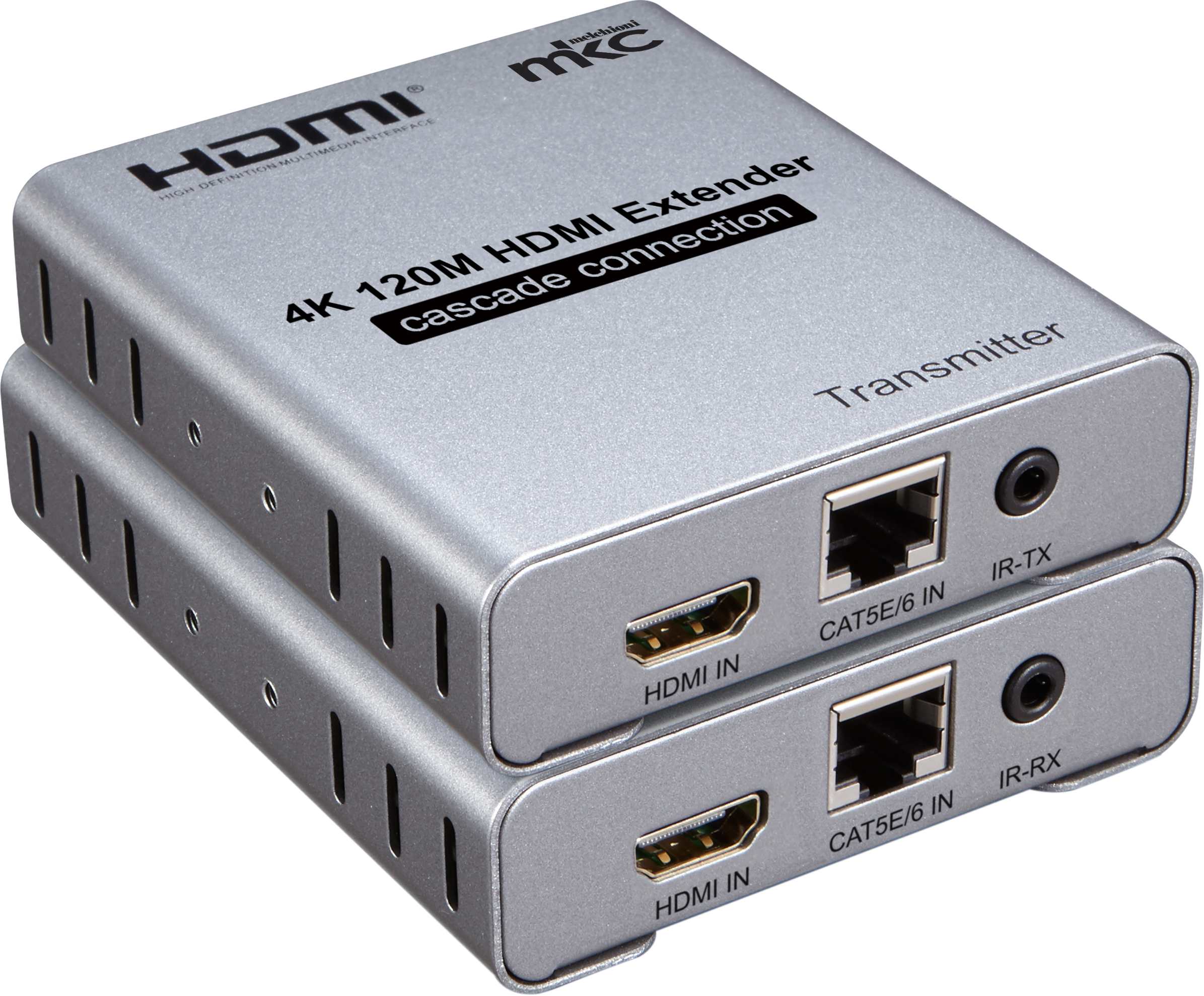

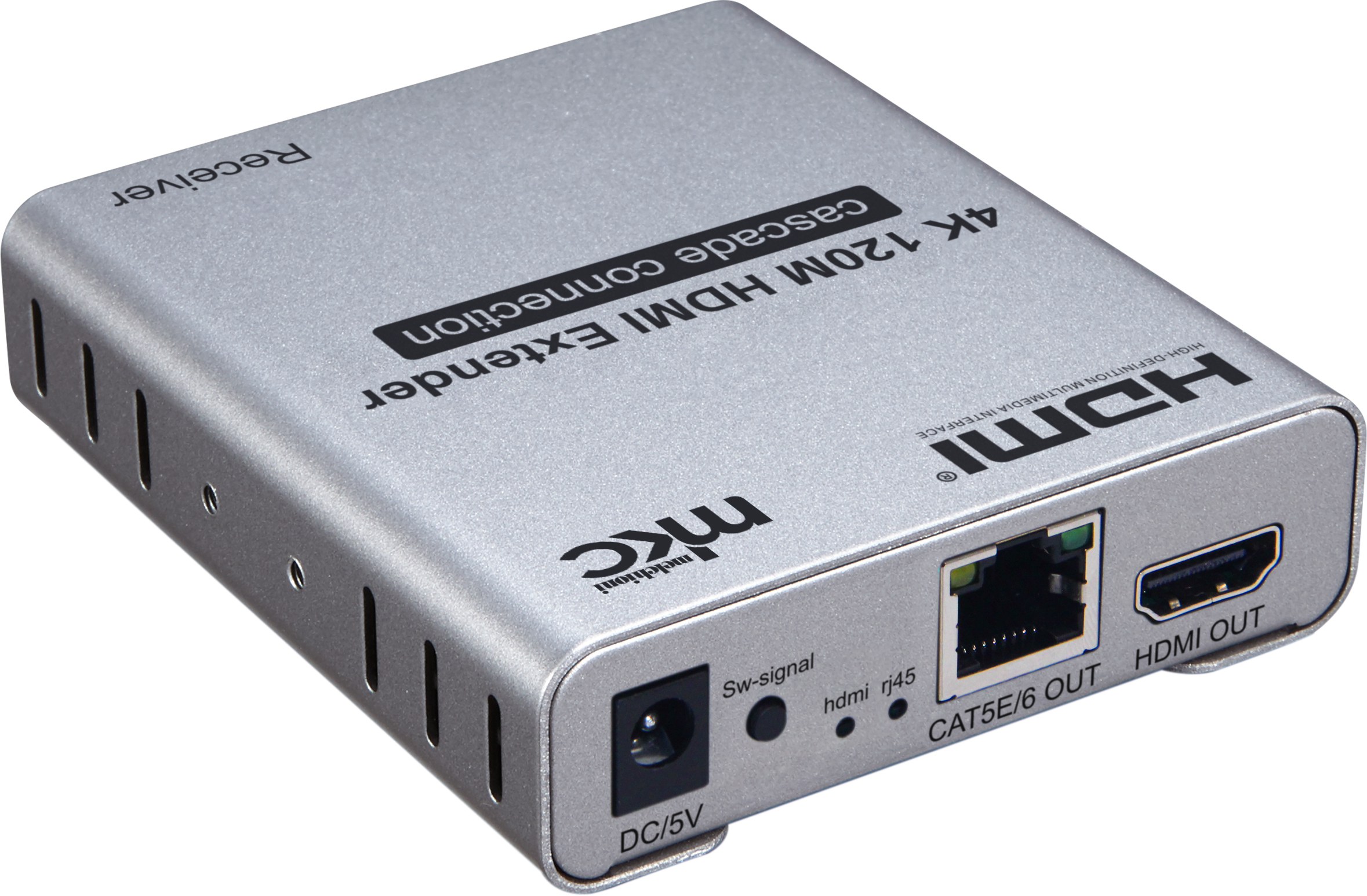

HDMI 1.4b Extender 4K up to 120m, daisy chain connection model MK-02ESC TX + RX
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 120m. Cascade connection function for multiple receivers.
Item
149029704
Part No.
149029704
Ean
8006012367584
Manufacturer
MKC
Non disponibile
Description
This HDMI extender, consisting of a Transmitter and a Receiver, uses a single Cat5e or Cat6 cable (recommended) instead of HDMI to transmit high-definition HDMI 1.4b 4K 30Hz signals up to 120 metres. The purpose of the extender is to achieve long-distance signal transmission using low-cost cables. The device offers solutions for noise issues, space and security, information distribution, presentations in conference rooms, command and control centres, educational and corporate training, HD signal distribution in home and professional installations. Additionally, it is possible to connect multiple receivers in cascade to a single transmitter. Each receiver is supported by an IR extender to control the source via remote control.
Features
• Long-distance transmission 4K 30Hz 120m Cat5e/Cat6 cable (recommended)
• Cascaded transmission of multiple receivers with IR control
• Low power consumption, low operating temperature and high safety
• Supports HDCP1.4 or lower
Technical specifications
• Cat5e/Cat6 cable length between TX and RX: up to 60 metres
• Supported HDMI input resolution: 4K/1080p/720p/576p/576i/480p/480i
• Supports audio formats: DTS/Dolby/LPCM
• Supported HDMI output resolution: 4K/1080p/720p/576p/576i/480p/480i
• Maximum bandwidth: 340MHz
• Maximum transmission speed: 3.4 Gbps x3
• Input video signal: 0.5 ~ 1.5 Volts p-p
• Output DDC signal: 5 Volts p-p (TTL)
• Input HDMI cable distance: standard HDMI cable AWG26 ≤15m
• Output HDMI cable distance: standard HDMI cable AWG26 ≤15m
• TX max operating current: 350mA
• RX max operating current: 200mA
• Power adapter format: AC input 100-240V 50/60Hz - DC5V/1A output
• Operating temperature: -15/+55 ℃
• Operating humidity: 5% to 90% relative humidity (non-condensing)
• Dimensions (LxWxH): 94x84x24mm
• TX weight: 223g
• RX weight: 223g
Package includes
• 1 x Transmitter
• 1 x Receiver
• 2 x IR cables
• 2 x 5V/1A power adapters
• 1 x user manual
Technical documents
| SKU | 149029704 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367584 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 24.00 mm |
| External length | 94.00 mm |
| External Width | 84.00 mm |
| Gross weight | 500.00 g |
| Lead time in order confirmations | Disponibile dalla settimana 35 |
| Manufacturer Part Number | 149029704 |
| Net weight | 446.00 g |
| Input/output number | 1/1 |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Extender Kit (TX+RX), HDMI Version 1.4b. Resolution up to 4K UHD 30Hz up to 120m. Cascade connection function for multiple receivers. |
| USB presence | No |
| Material | Metal |
