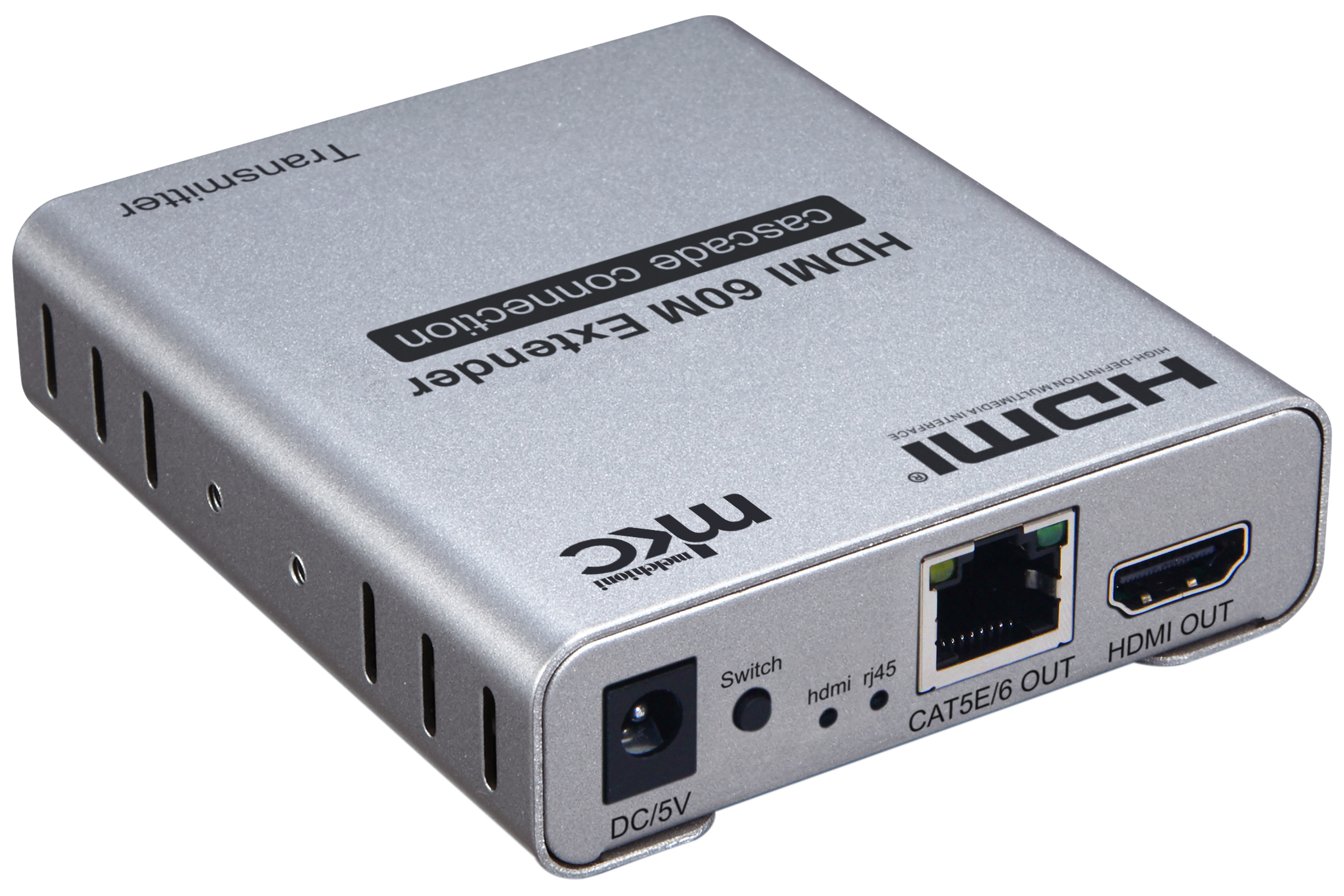

HDMI 2.0 4K Extender up to 60m, daisy chain connection model MK-60-V2.0 TX + RX
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI extender kit (TX+RX), HDMI 2.0 version. 4K UHD 60Hz resolution up to 60m. Cascading function for connecting multiple receivers.
Item
149029702
Part No.
149029702
Ean
8006012367560
Manufacturer
MKC
Non disponibile
Description
This HDMI 2.0 extender, consisting of a Transmitter and a Receiver, uses a single Cat5e or Cat6 cable (recommended) instead of HDMI to transmit high-definition HDMI 2.0 4K 60Hz signals up to 60 metres, or 4K 30Hz and 1080P up to 120 metres. The purpose of the extender is to achieve long-distance signal transmission with low-cost cables. The device offers solutions for noise, space, and security issues, information distribution, presentations in conference rooms, command and control centres, school and corporate training, and HD signal distribution in home and professional installations. Additionally, multiple receivers can be cascaded from a single transmitter. Each receiver is supported by an IR extender to control the source via remote control.
Features
• Long-distance transmission 4K 60Hz 60m with CAT5e/Cat6 cable (recommended)
• Cascaded transmission of multiple receivers with IR control
• Low power consumption, low operating temperature, and high safety
• Supports HDCP 2.2 or lower
Technical specifications
• Cat5e/Cat6 cable length between TX and RX: up to 60 metres
• Supported HDMI input resolution: 4K/1080p/720p/576p/576i/480p/480i
• Supported audio formats: DTS/Dolby/LPCM
• Supported HDMI output resolution: 4K/1080p/720p/576p/576i/480p/480i
• Maximum bandwidth: 600MHz
• Maximum transmission speed: 6 Gbps x3
• Input video signal: 0.5 ~ 1.5 Volts p-p
• Output DDC signal: 5 Volts p-p (TTL)
• Input HDMI cable distance: standard HDMI cable AWG26 ≤10m
• Output HDMI cable distance: standard HDMI cable AWG26 ≤10m
• TX max operating current: 350mA
• RX max operating current: 200mA
• Power adapter format: AC input 100-240V 50/60Hz - DC output 5V/1A
• Operating temperature: -15/+55 ℃
• Operating humidity: 5% to 90% relative humidity (non-condensing)
• Dimensions (LxWxH): 94x84x24mm
• TX weight: 223g
• RX weight: 223g
Package includes
• 1 x Transmitter
• 1 x Receiver
• 2 x IR cables
• 2 x 5V/1A power adapters
• 1 x user manual
Technical documents
| SKU | 149029702 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367560 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 24.00 mm |
| External length | 94.00 mm |
| External Width | 84.00 mm |
| Gross weight | 500.00 g |
| Manufacturer Part Number | 149029702 |
| Net weight | 446.00 g |
| Input/output number | 1/1 |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI extender kit (TX+RX), HDMI 2.0 version. 4K UHD 60Hz resolution up to 60m. Cascading function for connecting multiple receivers. |
| USB presence | No |
| Material | Metal |
