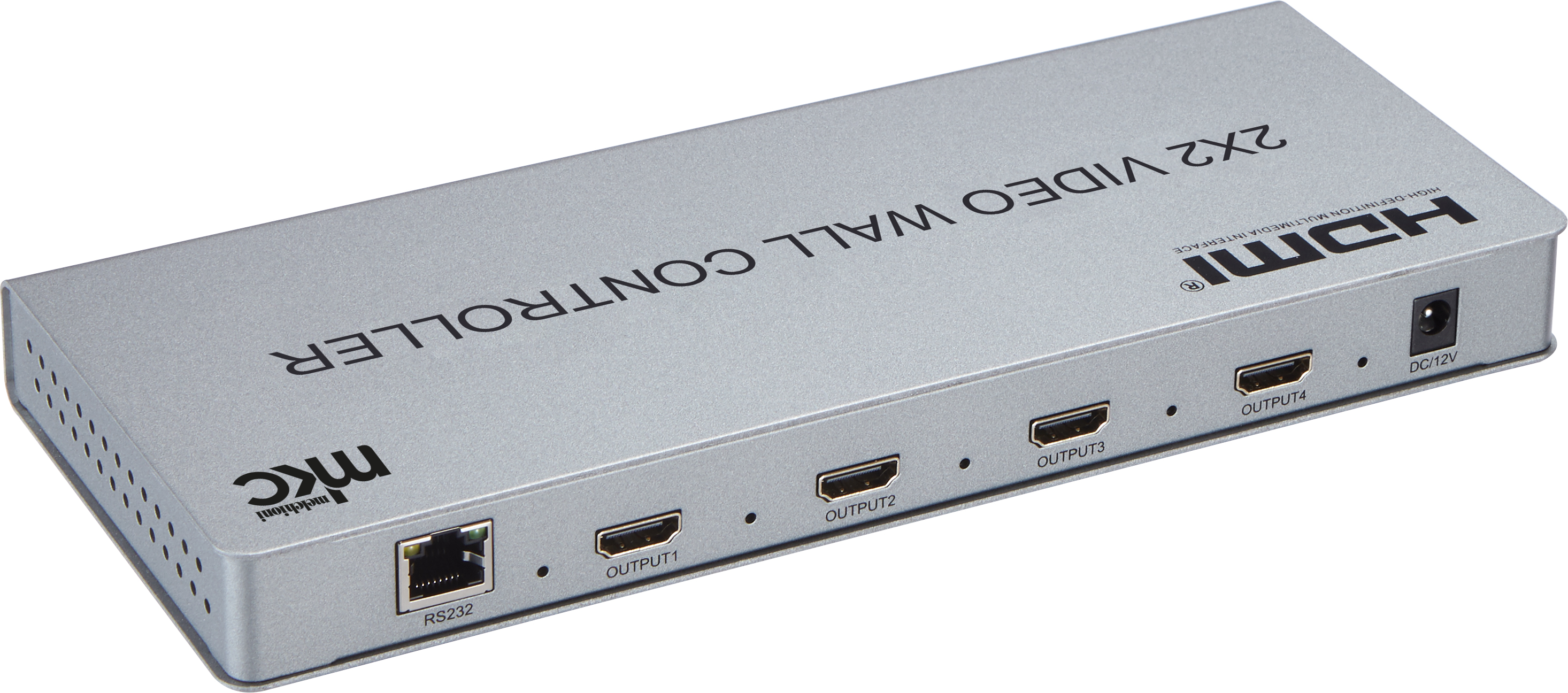

HDMI Controller for 4K 2x2 Video Wall mod. MK-VW2X2
MK-VW2X2 HDMI Controller for 4K 2x2 Video Wall
Description
The 4K 2x2 video wall controller supports one HDMI or DVI input and four HDMI outputs. Its main function is to split a full HDMI or DVI HD image signal into four sections and assign them to four video display units (such as rear projection units, LCD TVs, etc.), complete with four high-definition HDMI video display units to form a large dynamic image screen.
Technical Features
• Video Inputs: 1 DVI input / 1 HDMI input
• HDMI Version: HDMI 1.4
• HDCP Version: HDCP 1.4
• Video Outputs: 4 HDMI
• Audio Outputs: 1 audio output, 3.5mm jack
• Supported Input Resolution: 1920x1080P 25/30/50/60Hz, 3840x2160P 25/30Hz
• Supported Output Resolution: 1920x1080P 25/30/50/60Hz
• Supported Input Video Format: YUV422 16bit, RGB444 24bit
• Output Video Format: RGB444 24bit
• Supports RS232 protocol (Net RJ45 port)
• Power Supply: DC 12V / 2A
• Dimensions (L x W x H): 211 x 78 x 27 mm
• Weight: 500g
• Package Contents: Controller, Power Supply, User Manual
Technical documents
| SKU | 149029731 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367867 |
| Eu Tariff Code (TARIC) | 85371098 |
| External Height | 27.00 mm |
| External length | 211.00 mm |
| External Width | 78.00 mm |
| Gross weight | 600.00 g |
| Manufacturer Part Number | 149029731 |
| Net weight | 500.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | MK-VW2X2 HDMI Controller for 4K 2x2 Video Wall |
