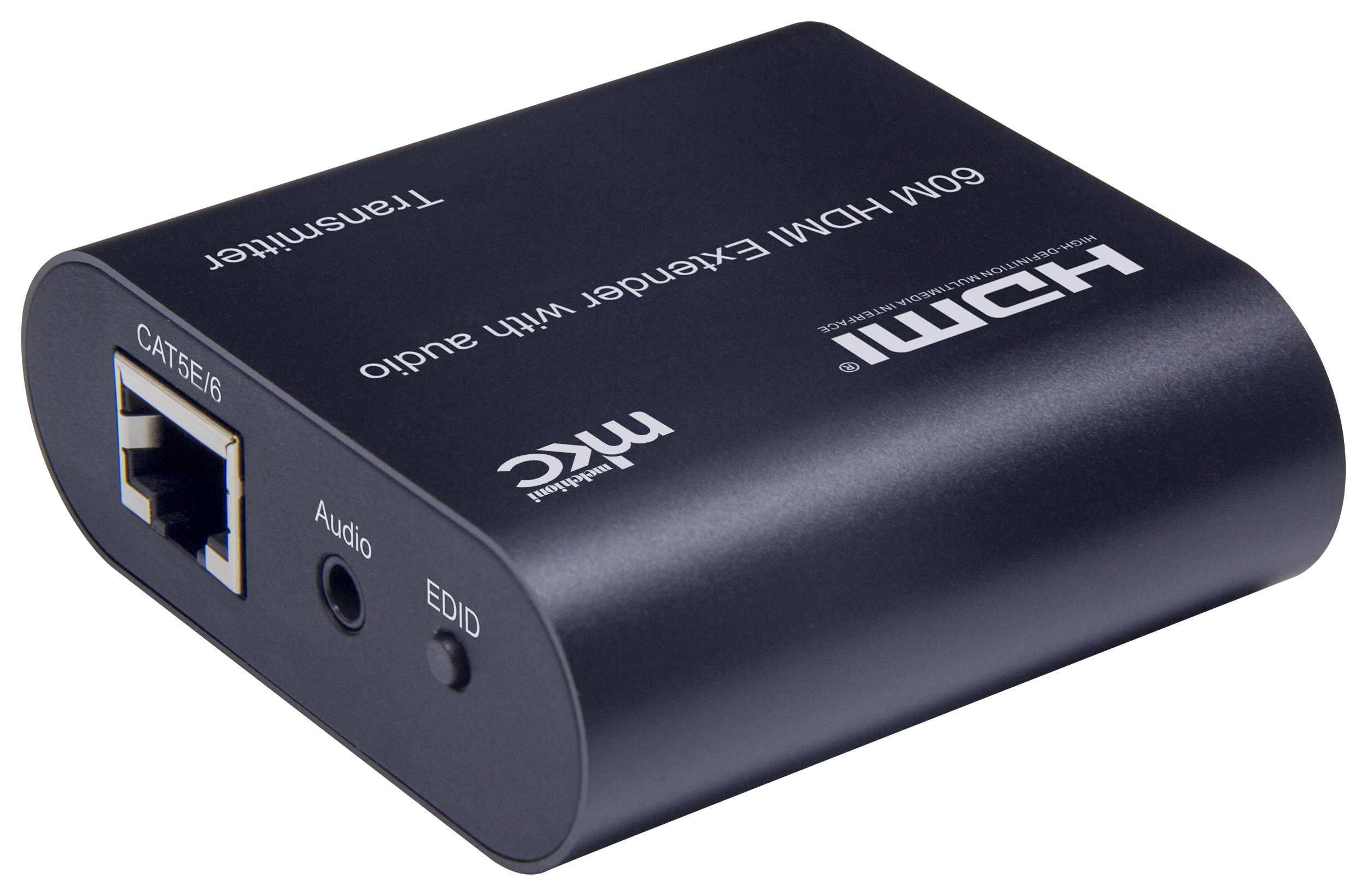

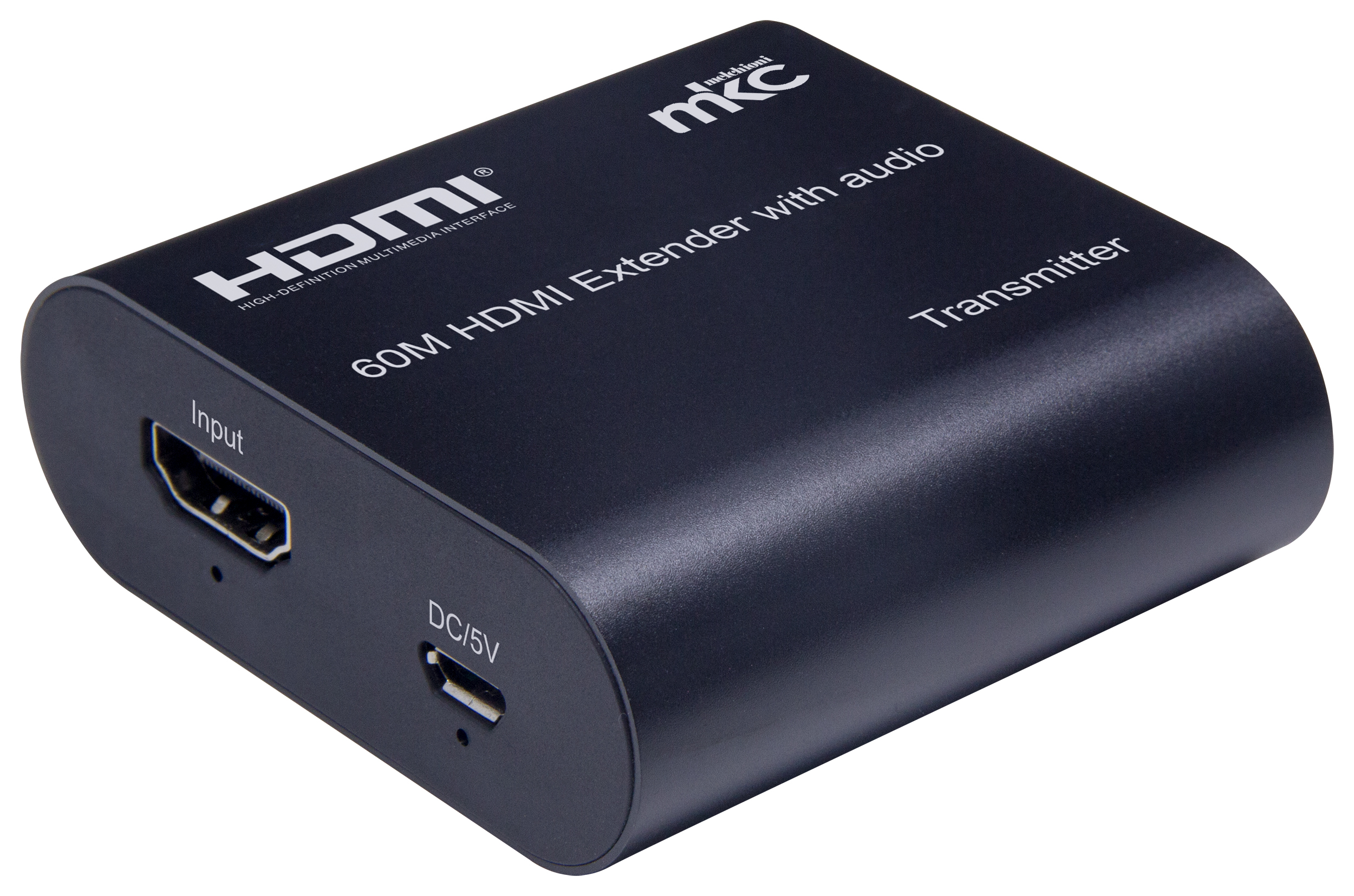

HDMI extender up to 60m over single Cat5e/6 model MK-1560
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Extender Kit (TX+RX), HDMI Version 1.4. Full HD 1080p 60Hz resolution up to 60m over a single Cat5e/6 cable.
Item
149029700
Part No.
149029700
Ean
8006012367546
Manufacturer
MKC
Non disponibile
Description
The Extender uses single cat5e or cat6 cables (recommended) instead of HDMI cables to transmit high-definition signals up to 60 metres, reducing costs. The Extender is designed to provide long-distance transmission of high-definition signals.
Application
The HDMI extender is used in audiovisual conferences, command and control centres, home theatres, multimedia teaching, conference systems, and so on.
Features
· Supports maximum video resolution 1080p / 60Hz
· Long-distance transmission up to 60M
· Both TX and RX support left and right 3.5mm audio output
· Low power consumption, low temperature, and high security
Technical specifications
· CAT-6 / CAT-5E cable length between Rx and TX: up to 60 metres
· Input resolution supported via HDMI: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
· Output resolution supported via HDMI: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
· Maximum bandwidth: 150 MHz
· Maximum transmission speed: 4.5 Gbps
· Input video signal: 0.5 ~ 1.5 Volt p-p
· Output DDC signal: 5 Volt p-p (TTL)
· Input HDMI cable distance: standard HDMI cable AWG26 ≤10m
· Output HDMI cable distance: standard HDMI cable AWG26 ≤15m
· TX max working current: 300mA
· RX max working current: 300mA
· Power supply: AC input (50/60Hz) 100 V-240 V; DC output 5V / 1A
· Operating temperature range: (from -15° to +45° C)
· Operating humidity range: from 5% to 90% relative humidity (non-condensing)
· Dimensions (L x W x H): 64x59x22 (mm)
· TX weight: 53 g
· RX weight: 53 g
Connections
1. Connect an HDMI cable between the source device and the TX Extender,
maximum cable length 10 metres;
2. Connect an HDMI cable between the display device and the RX Extender,
maximum cable length 15 metres;
3. Connect single cat-5e or cat-6 cables (recommended) instead of HDMI cables between
TX and RX Extender, maximum cable length 60 metres;
4. Connect the 5V power supply to TX and RX;
5. LED indicator light:
TX and RX LED indicator: when an input signal is present, it turns blue
6. EDID button: the button supports switching EDID between 720P and 1080P (1080P is the default EDID when powered on).
Package includes:
· 1 x TX extender
· 1 x RX extender
· 2 x 5V 1A power supplies
· 1 x user manual
Technical documents
| SKU | 149029700 |
| AVG leadtime (calendar days) | 120 |
| Country of origin | CN CHN CHINA |
| Ean Number | 8006012367546 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 22.00 mm |
| External length | 64.00 mm |
| External Width | 59.00 mm |
| Gross weight | 120.00 g |
| Lead time in order confirmations | Disponibile dalla settimana 38 |
| Manufacturer Part Number | 149029700 |
| Net weight | 106.00 g |
| Input/output number | 1/1 |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Extender Kit (TX+RX), HDMI Version 1.4. Full HD 1080p 60Hz resolution up to 60m over a single Cat5e/6 cable. |
| USB presence | No |
| Material | Metal |
