HDMI Selector V2.0b UHD 4K/60Hz 4IN x 1OUT mod. MK-DSW4 2.0
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Selector 4IN x 1OUT. 4K 60Hz Resolution V2.0b, HDCP 2.2
Item
149029722
Part No.
149029722
Ean
8006012367775
Manufacturer
MKC
Non disponibile
Description

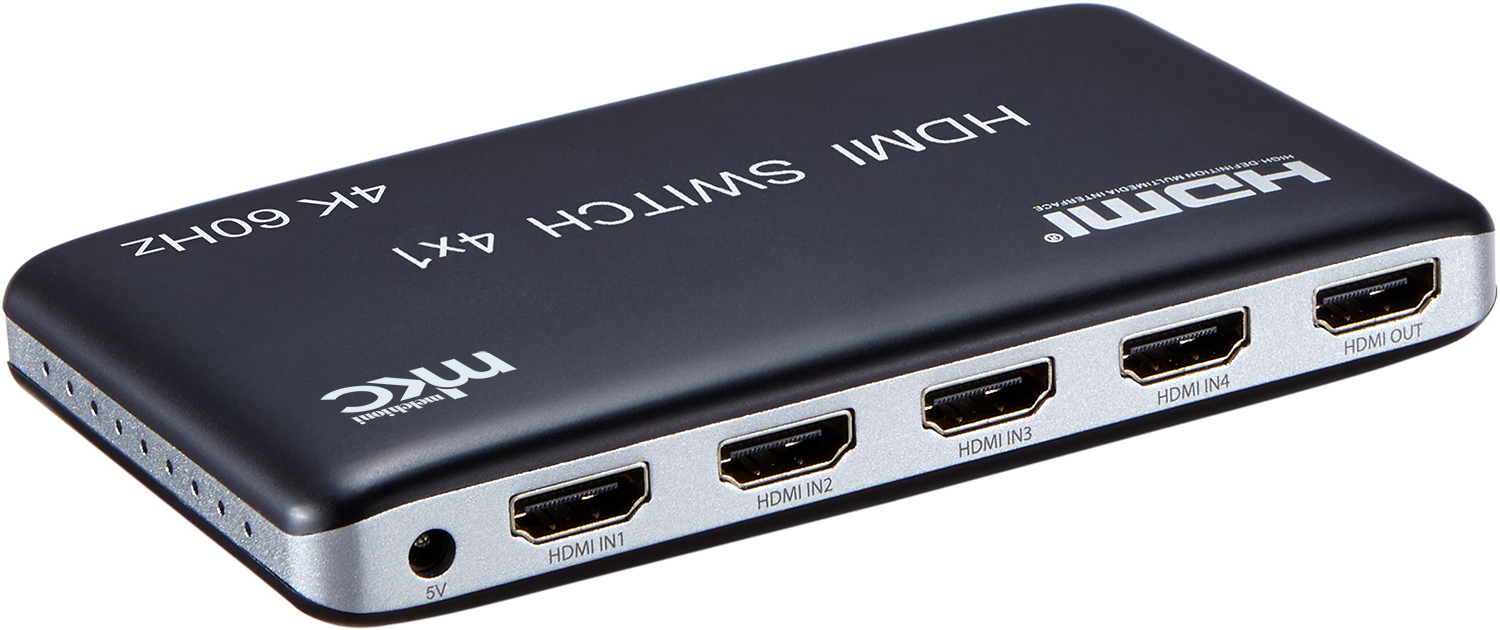

This 4x1 HDMI selector with UHD 4K/60Hz resolution allows switching between 4 HDMI ports on a single TV, monitor, or projector, using the supplied remote control or the buttons on the unit. The selector can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. It supports HD video formats: 720p, 1080i, 1080p, 4K/30Hz, 4K/60Hz.
Features
• HDMI Version: 2.0b
• HDCP Version: 2.2
• HDMI Resolution: up to 4K/60Hz
• 3D video format support
• Video colour format support: 24/30/36bit Deep colour
• Audio format support: DTS-HD/Dolby TrueHD/DTS/Dolby-AC3/DSD
• Maximum bandwidth: 600MHz
• Maximum transmission speed: 6Gbps
• Input cable distance: standard HDMI AWG26 cable ≤8m at 4K/30Hz resolution / ≤3m at 4K/60Hz resolution, with standard HDMI 2.0 cable.
• Input cable distance: standard HDMI AWG26 cable ≤8m at 4K/30Hz resolution / ≤5m at 4K/60Hz resolution, with standard HDMI 2.0 cable.
• Maximum working current: 350mA
• Power adapter format: input: AC 100 V-240 V 50/60Hz – output DC 5V/1.5A
• Operating temperature range: from -15 to +55 ℃
• Dimensions (LxWxH): 136x80x22mm
• Weight: 118g
Package includes
• 1 x HDMI Selector

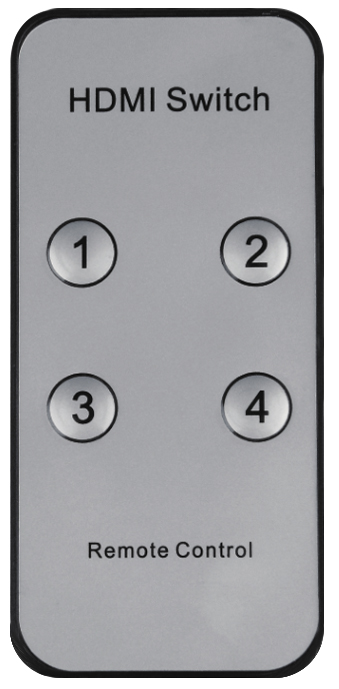

• 1 x IR Remote Control
• 1 x Power Adapter
• 1 x User Manual
Technical documents
| SKU | 149029722 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367775 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 22.00 mm |
| External length | 136.00 mm |
| External Width | 80.00 mm |
| Gross weight | 160.00 g |
| Manufacturer Part Number | 149029722 |
| Net weight | 118.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Selector 4IN x 1OUT. 4K 60Hz Resolution V2.0b, HDCP 2.2 |
