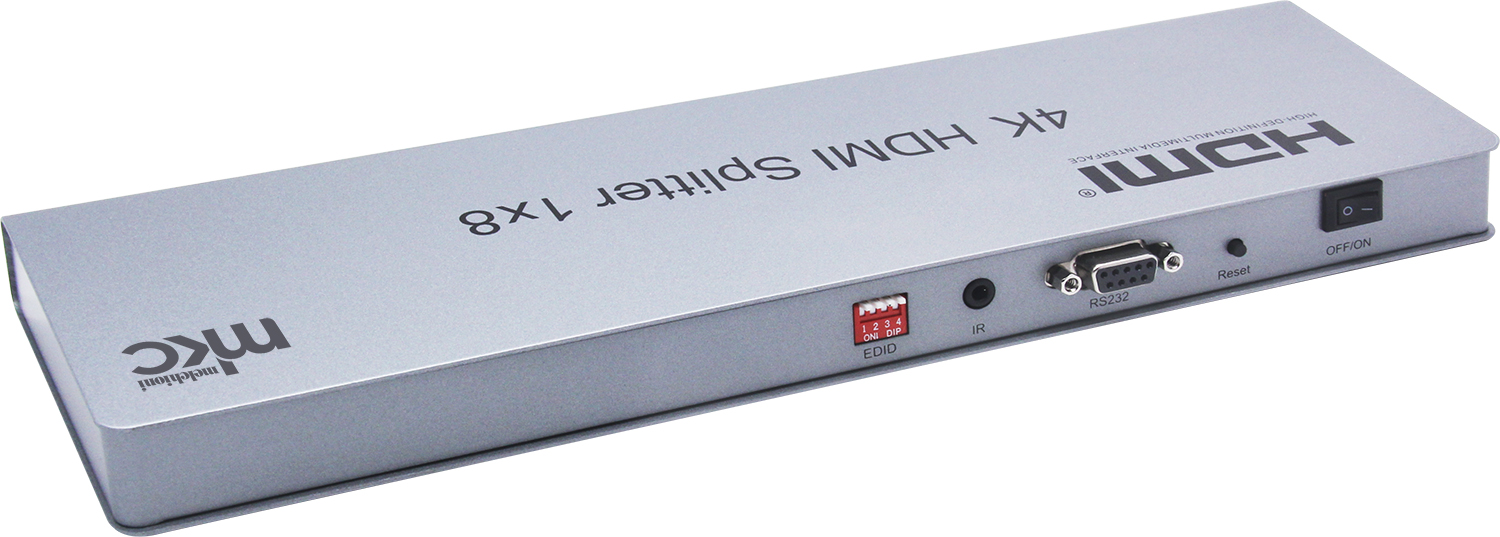

HDMI Splitter 4K 60Hz V2.0 EDID 1IN x 8OUT model MK-911-8plus
VAT incl.
Subscription
00,00 €*
00,00 €*
previously 0
HDMI Splitter 1 IN x 8 OUT, 4K 60Hz V2.0 resolution, HDCP 2.2 with EDID function
Item
149029714
Part No.
149029714
Ean
8006012367690
Manufacturer
MKC
Non disponibile
Description
This 4K UHD 1x8 HDMI splitter, compatible with a 4K UHD input resolution of 3840x2160/60Hz, allows you to split the HDMI Audio Video input signal into 8 output signals with different AV formats, enabling the source to be displayed on two monitors, TVs, or HDMI 4K UHD-compatible projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Equipped with HDMI version 2.0 and HDCP version 2.2 protocol, it supports UHD video signals 3840x2160/60Hz and features: 3D, HDR, HDMI CEC, and EDID via dip switches.
Equipped with EDID function with eight selectable modes
Thanks to the EDID function via 4 dip switches located on the back of the device, it is possible to select the Audio and Video output format based on installation requirements:
• Copy HDMI input up to 4K 60Hz
• Activate HDR function
• Download via RS232 Interface
• 2D Video 4K 30Hz
• 2D Video 4K 30Hz
• 2D Video 4K/60Hz (HDR)
• 3D Video 1080p audio 2CH
• 2D Video 1080p audio 2CH
• 2D Video 1080p audio 5.1CH
Features
• HDMI Version: 2.0
• HDCP Version: 2.2
• HDR Support
• EDID management support
• 3D video format support
• HDMI CEC support (output1 only)
• HDMI resolution: up to 3840 x 2160 / 60Hz
• Video format support: 8/10/12bit Deep Colour
• Audio format support: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Maximum bandwidth: 600MHz
• Maximum transmission rate: 6Gbps
• Input cable distance: 1080p resolution ≤8m / 4K resolution ≤8m (standard HDMI AWG26 cable)
• Output cable distance: 1080p resolution ≤8m / 4K resolution ≤8m (standard HDMI AWG26 cable)
• Maximum operating current: 2A
• Power adapter format: AC input 100V-240V 50/60Hz – DC output 5V/3A
• Operating temperature range: from -15° to +55°
• Dimensions (L x W x H): 310 x 90 x 24mm
• Weight: 864g
Package includes
• 1 x HDMI splitter
• 1 x Power adapter
• 1 x User manual
Technical documents
| SKU | 149029714 |
| AVG leadtime (calendar days) | 120 |
| Ean Number | 8006012367690 |
| Eu Tariff Code (TARIC) | 85437090 |
| External Height | 24.00 mm |
| External length | 310.00 mm |
| External Width | 90.00 mm |
| Gross weight | 1,050.00 g |
| Manufacturer Part Number | 149029714 |
| Net weight | 864.00 g |
| Selling quantity | 1 |
| Selling UoM | Each |
| Short Description | HDMI Splitter 1 IN x 8 OUT, 4K 60Hz V2.0 resolution, HDCP 2.2 with EDID function |
