Description

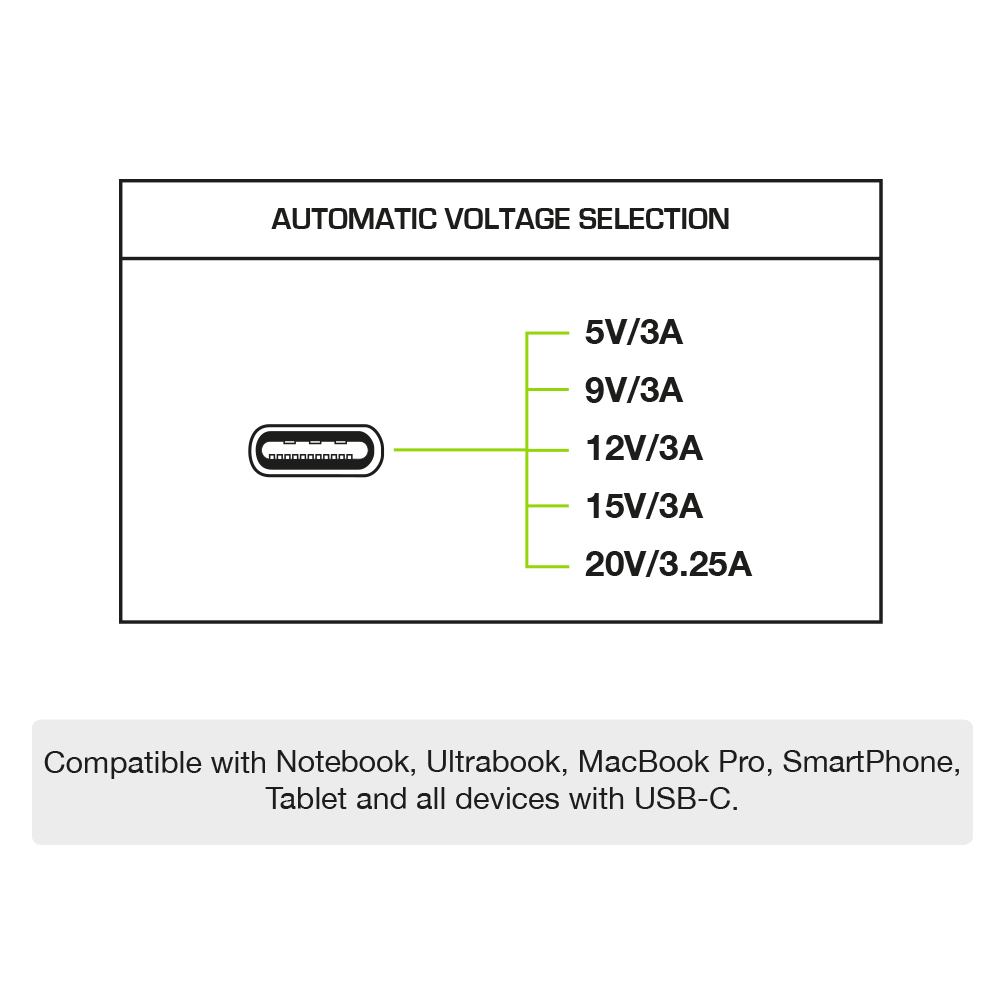

The 65W POWER CHARGER USB-C universal power supply is designed to provide efficient and safe power to devices compatible with USB Type-C, including laptops, MacBook Pro, smartphones, and tablets. Equipped with Power Delivery (PD) technology, it delivers multiple voltages (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A) to automatically adapt to the connected device’s needs, ensuring optimal charging. Its compact structure (7.5 x 7.5 x 3 cm) and black design make it ideal for home or office use. From a technical standpoint, the power supply supports a nominal input voltage of 230 Vac with a tolerance from 110 to 240 Vac and a frequency of 50/60 Hz, with a maximum current of 1.5 A. Typical efficiency exceeds 92%, contributing to low energy consumption. It features integrated protections against overloads, short circuits, and overheating, ensuring reliability and operational safety. The USB Type-C output port allows for direct connection, while the device is CE certified according to safety and electromagnetic compatibility directives.

Technical documents

External Height 75.00 mm
External length 75.00 mm
Thickness 30.00 mm
External Width 30.00 mm
Gross weight 0.37 kg
Input connector type Plug Ita
Input voltage range AC 100-240V
Net weight 0.30 kg
Presence of battery charger output No
Current type Current range
Voltage type Multivoltage
Colour Black
Fans No
Input voltage 230V
Material abs nero
Output Current 3A
Power rating (W) 65W
Protection rating IP IP20
Mounting type Wall-mounted
Output voltage 5V,9V,12V
Frame 17 (1)
Frame 18 (1)
Frame 19 (1)
Frame 20 (1)
Frame 21 (1)
