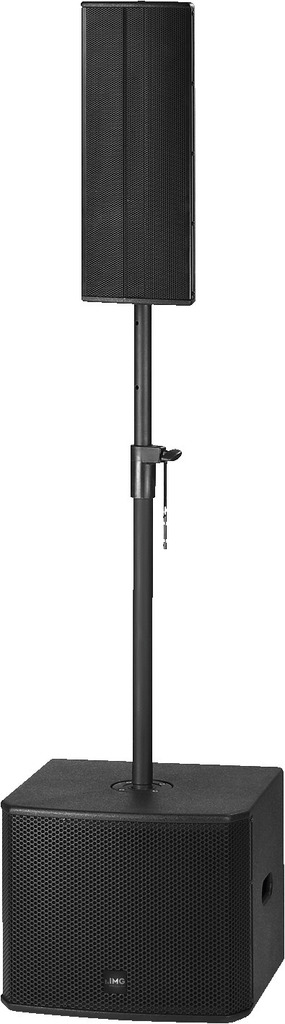

PSUB-12AKA - Active Subwoofer

High-performance compact subwoofers with integrated 2.1 active modules are suitable for a wide range of applications.

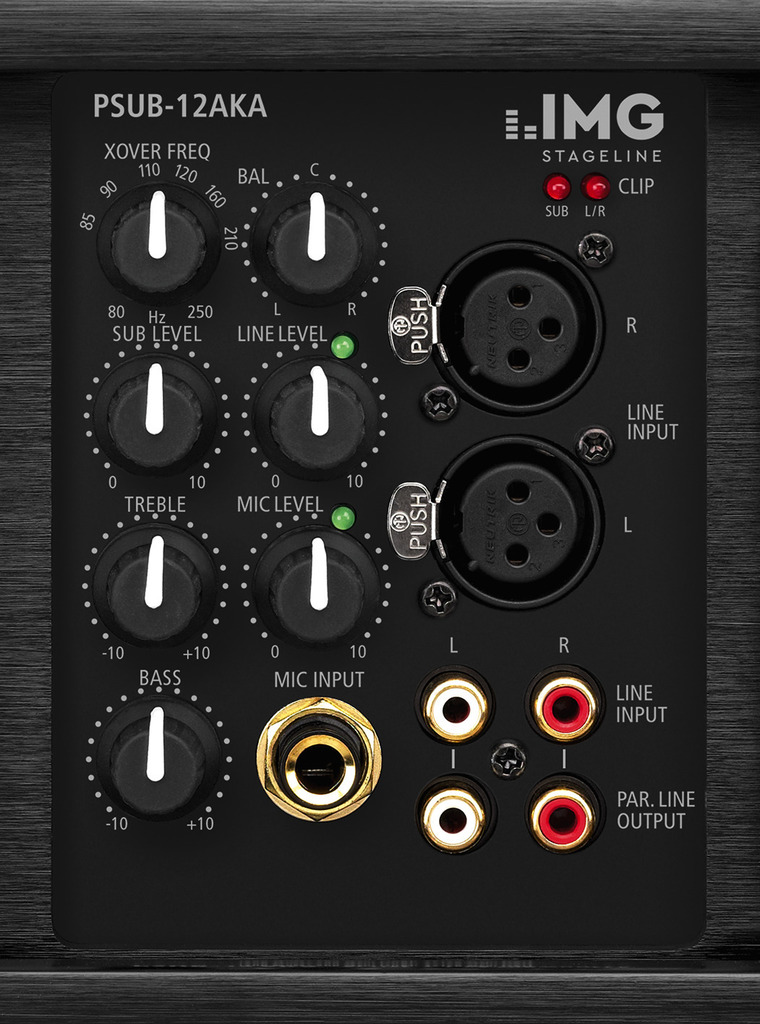

They form the basis for setting up a compact PA system of small or medium size without the need to transport additional amplifier systems. The microphone and line inputs can be mixed, and the crossover frequency from the subwoofer to the passive satellite speakers can be adjusted over a wide range. The mixed signal can then be sent to other systems via the stereo pre-output.
- Active 2.1 PA subwoofer, 1,200 W
- Active bass-reflex subwoofer system with wooden cabinet
- Integrated 2.1 active module
- Rated power: SUB: 500 W, SAT: 2 x 150 W
- High-power, long-excursion 30 cm (12") bass speaker
- Stereo line + microphone input with gain control
- Adjustable crossover frequency: 80–250 Hz
- 2-way tone control for bass and treble, balance
- Built-in limiter, clipping indicator
- High-quality workmanship, built-in handles for transport
- Metal front grille, stand mount, rubber feet
tastenwelt 03/2013:
“The small active system (PSUB-12AKA and 2 x PAB-306/SW) can be used for general applications, suitable for entertainers, small DJ events or piano bars. Besides its transparent sound, the system impresses with good workmanship and its features.”
+ Excellent value for money
tools4music 01/2014:
“Delivers a very appealing sound. The PSUB-12AKA offers a performance that perfectly matches the MOVE-06 tops. Very compact dimensions but with high power and well-balanced sound. In a word: enjoyable!”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety warnings and notices:
The device is powered by a potentially lethal mains voltage. Therefore, never tamper with it yourself and do not insert objects into the ventilation openings. There is a risk of electric shock.
Do not use the device and immediately unplug it if visible damage to the device or power cable is noticed, if a fault is suspected after a fall or similar incident, or if malfunctions occur. Always return the device to a specialised workshop for repair.
Use the device only indoors and protect it from drips and splashes of water, high humidity, and heat (permitted operating temperature range 0 - 40 °C).
Never set the speaker volume to very high levels. High volumes can cause long-term hearing damage!
Never pull the power plug from the socket by the cable, always pull the plug itself.
If the device is to be disposed of permanently, hand it over to a local recycling centre for environmentally friendly disposal.
