PSUB-15AKA - Active Subwoofer

High-performance compact subwoofers with integrated 2.1 active modules are suitable for a wide range of applications.
They form the basis for setting up a compact PA system of small to medium size without the need to transport additional amplifier systems. Microphone and line inputs can be mixed, and the crossover frequency from the subwoofer to the passive satellite speakers can be adjusted over a wide range. The mixed signal can then be transmitted to other systems via the stereo pre-output.

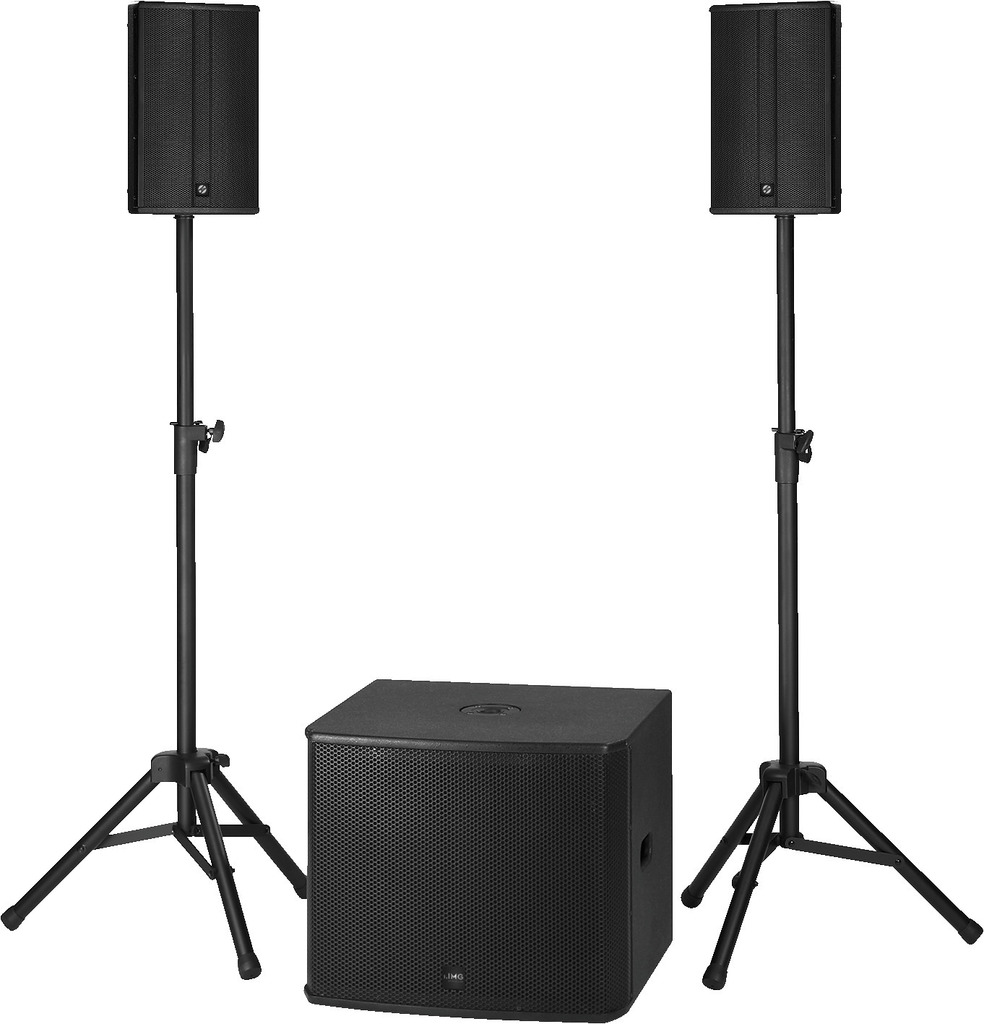

Active 2.1 PA subwoofer, 1,200 W
Active bass-reflex subwoofer system with wooden cabinet
Integrated 2.1 active module
Rated power: SUB: 500 W, SAT: 2 x 150 W
High-power, long-excursion 38 cm (15") bass speaker

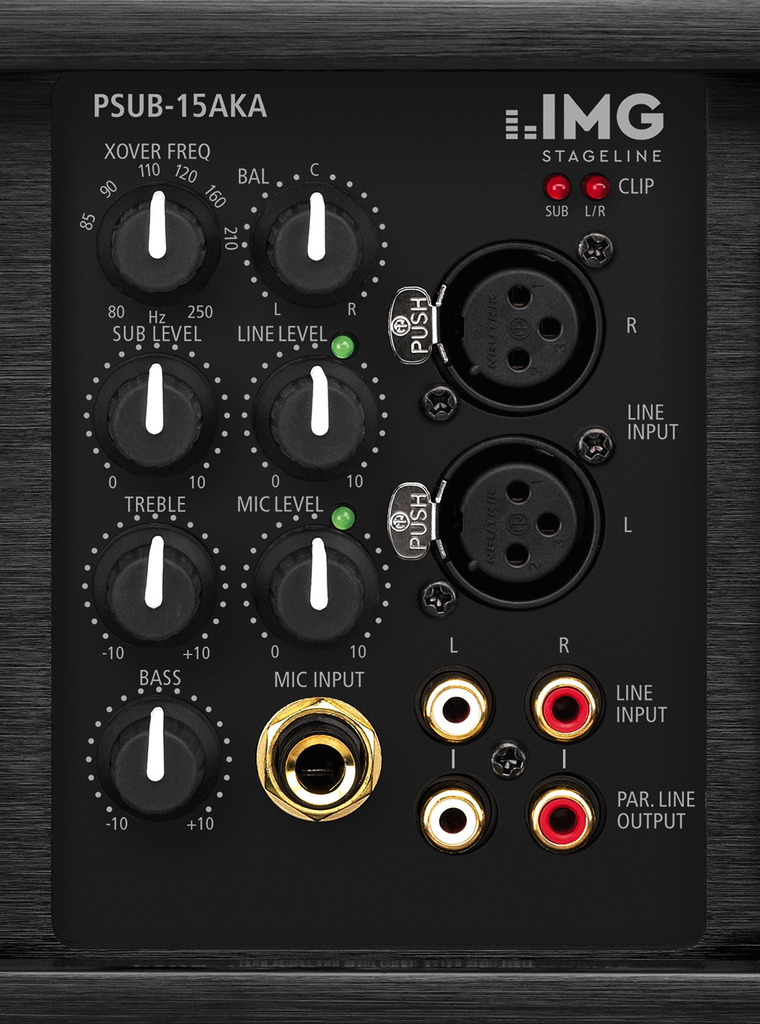

Stereo line input and microphone input with gain control
Adjustable crossover frequency: 80–250 Hz
2-way tone control for bass and treble, balance
Built-in limiter, clipping indication
High-quality workmanship, integrated handles for transport
Metal front grille, stand mount, rubber feet
SOUNDCHECK 04/2013
“With the PAB-308/SW and the PSUB-15AKA, IMG Stage Line offers PA systems that, despite their compact size, can achieve very high volume levels. The PAB-308/SW ensures good intelligibility during speech reproduction. Every word sung by the vocalist was understandable, even without any help from the equaliser.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and hazard warnings
The device is powered by potentially lethal mains voltage. Therefore, never tamper with it yourself and do not insert objects into the ventilation openings. There is a risk of electric shock.
Do not use the device and immediately disconnect the plug from the socket if there is visible damage to the device or power cable, if a fault is suspected after a fall or similar incident, or in the event of malfunctions. Always have the device repaired by a specialist workshop.
Use the device only indoors and protect it from drops and splashes of water, high humidity, and heat (operating temperature range 0 - 40 °C).
Never set the speaker volume to very high levels. High volumes can cause long-term hearing damage!
Never pull the power plug by the cable; always grasp the plug.
If the device is to be permanently disposed of, take it to a local collection centre for environmentally friendly disposal.
