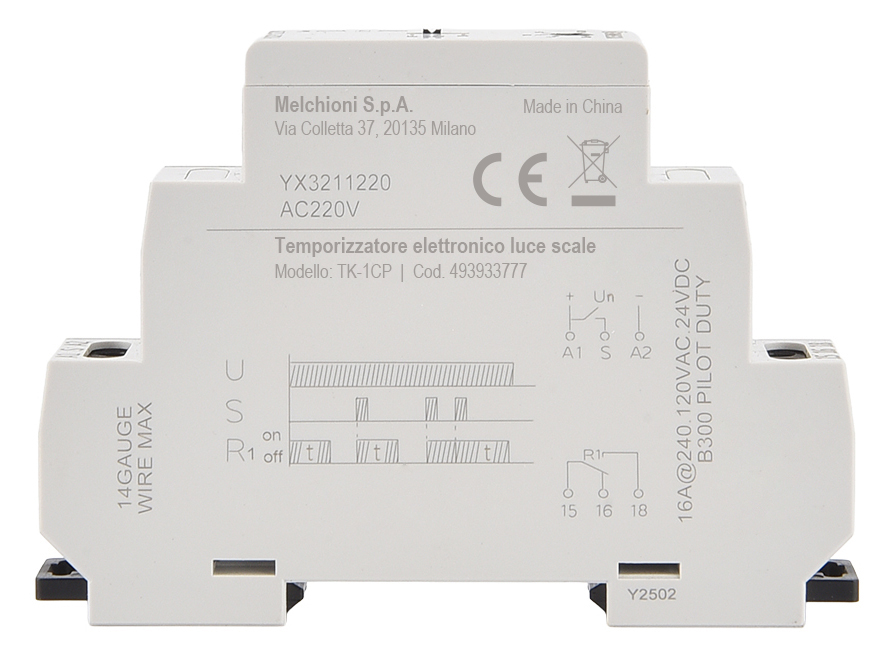

TK-1CP - Electronic stair light timer DIN rail guide 1 module, with clean contact

MKC 493933777 TK-1CP - Electronic Staircase Light Timer DIN Rail 1 Module, with Clean Contact

The MKC TK-1CP electronic timer is the professional solution for timed control of electrical loads in residential and commercial settings.
Compact, reliable, and powerful (up to 16 A load), it is designed to control lighting, ventilation, pumps, signs, and electrical devices with simple and safe management.

DIN Rail – SPDT Relay with OFF / AUTO / ON selector
Precise control. Versatile installation. A reliable solution.

Intuitive operating modes thanks to the front sliding selector, allowing quick selection of the operating mode:

1. OFF – Load always deactivated
2. AUTO – Timed activation via push button (A1-S)
3. ON – Load permanently active

The time adapts to the actual needs of the system, avoiding waste and unnecessary wear.

• Maximum operational flexibility in any situation
• Adjustable timing
• Delay adjustable from 30 seconds to 20 minutes
• Automatic time reset with each pulse
• Immediate cycle restart in case of new activation

Professional changeover contact (SPDT). Equipped with SPDT output (15-16-18):

• 15 → Common contact

• 16 → Normally closed (NC)

• 18 → Normally open (NO)

Ensures maximum versatility in systems:

• phase-controlled

• neutral-controlled

• single-phase or three-phase

Also suitable for more complex control logics.

Clear and immediate indicators

• Green LED: power presence

• Red LED: load active

Immediate visual control of the system status.

Simple and safe installation

• Power supply: 220–240 V AC – 50 Hz

• DIN rail mounting

• Terminals up to 2.1 mm² (14 AWG)

• Maximum current: 16 A

• Compatible with lighting systems and other medium power electrical loads.

• MKC reliability

• High adjustment precision

• Constant timing repeatability

• Operating temperature: -20 °C / +55 °C

• Structure designed for continuous use

A device designed to operate 24/7 with total stability.

Energy efficiency and control

• Reduces waste

• Prevents accidental over-activation

• Increases system safety

• Allows manual control if necessary

The load activates when needed, for the required time.

Ideal applications

• Technical lighting

• Fans and extractors

• Circulation pumps

• Illuminated signs

• Residential and commercial systems

In summary

• The MKC 16A electronic timer offers:

• Connection versatility (SPDT)

• Adjustable timing

• Current up to 16 A

• Professional DIN installation

Powerful and reliable timed control for every system.

TECHNICAL DATA:

• Operating voltage: 220 – 240 V AC 50 Hz

• Time adjustment tolerance: 10%

• Output: SPDT

• Time adjustment repeatability: 2%
• Max load current: 16 A

• Terminal capacity: 14 AWG (2.1 mm²)

• Delay adjustment: 30 sec – 20 min

• Operating temperature: -20 - +55 °C
