Description

The UNI-T UTE9802+ is a True RMS digital bench power meter designed for laboratory, testing, production, and quality control applications. It allows the measurement of voltage, current, active power, power factor, and frequency in AC, DC, and AC+DC modes, with a measuring range up to 600 V, 20 A, and 12 kW. The four-window LCD display enables simultaneous viewing of multiple parameters, while autorange/manual functions, reading averaging, and programmable alarm thresholds ensure reliable measurements even on variable loads. Thanks to the RS-232 and RS-485 interfaces with support for SCPI and Modbus protocols, the UTE9802+ can be easily integrated into data acquisition, automation, and testing systems. Voltage range: 3.0 V~600 V Current range: 0.5 mA~20.0 A Frequency range: DC, 40 Hz~400 Hz Accuracy: ± (0.4% reading + 0.1 range + 1 digit) Measurement modes: AC, DC, AC+DC Connectivity: RS-232/RS-485 Dimensions: ½ 2U Display: VA LCD

Technical documents

Maximum detectable AC current	20.00 A
Gross weight	4.50 kg
Net weight	3.70 kg

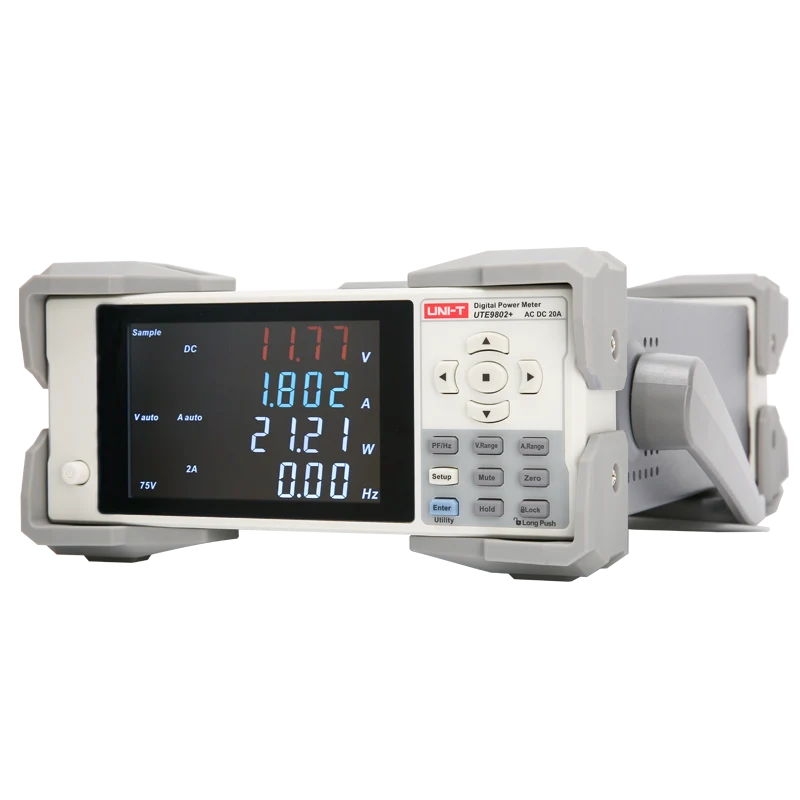

UTE9802+ UNI-T Power Meter
